Fehlersuche bei pneumatisch betätigten Ventilen in industriellen Anwendungen

Executive Quick Troubleshooting Guide

In high-consequence industrial automation, unexpected downtime due to air operated valve Ausfälle directly impacts production yield and operational safety. Swift resolution requires a structured diagnostic approach rather than guesswork. Most pneumatic control valve issues stem from three primary vectors: compromised instrument air quality, mechanical wear, or electrical signal degradation. By addressing these root causes systematically, plants minimize revenue loss and maintain strict process control.

Key Takeaways for Air Operated Valve Failures

Bei der Ausführung Pneumatikantrieb Fehlersuche, field technicians must prioritize the most common failure points. The table below outlines critical failure symptoms alongside their immediate corrective actions:

Fehlersymptom	Wahrscheinlichste Ursache	Sofortige Korrekturmaßnahmen
Sluggish or Delayed Stroke	Low supply pressure or high packing friction	Verify FRL output; adjust packing gland slightly
Valve Stuck / No Movement	Directional control valve stuck or solenoid burnout	Manually override solenoid; check 4-20mA loop
Inaccurate Flow / Hunting	Control valve calibration drift or positioner misalignment	Re-align electro pneumatic positioner; recalibrate zero/span
Audible Air Hissing	Geblasen double acting cylinder seals or diaphragm rupture	Isolate air supply; perform leak test; replace seals

• Air Quality is Paramount: Over 80% of premature actuator failures are caused by moisture, oil, or particulate contamination violating instrument air quality standards.
• Isolate Before Replacing: Always differentiate between a mechanical valve body bind and a pneumatic actuator fault before removing the valve from the line.
• Sicherheit zuerst: Never attempt maintenance without executing the proper lockout tagout loto safety protocol and completely venting residual pneumatic pressure.

Fast-Track Diagnostic Flowchart (Snapshot)

Follow this rapid triaging sequence to isolate faults in under five minutes:

1. Check the Control Signal:
   • Überprüfen Sie die 4-20mA control loop signal or digital bus command at the positioner.
   • If no signal: Troubleshoot the I/O card or wiring.
2. Verify Air Supply:
   • Bestätigen Sie die filter regulator lubricator frl unit reads within the specified PSI/Bar range.
   • Check for upstream compressed air pressure fluctuations.
3. Test the Solenoid / Pilot Valve:
   • Actuate the manual override on the vorgesteuertes Magnetventil.
   • If the valve moves: The issue is electronic or signal-based.
   • If the valve stays stationary: The issue is mechanical or purely pneumatic.
4. Mechanische Komponenten prüfen:
   • Prüfen Sie die valve stroke length tracking Anzeige.
   • Suchen mechanical binding in valves or a seized stem due to overtightened packing glands.

Understanding Air Operated and Actuated Valves

Pneumatic systems form the backbone of modern flow control. When troubleshooting air operated & actuated valves in industrial applications, you must first master how these components function on the factory floor. Let’s break down the core equipment you will encounter.

Types of Industrial Pneumatic Control Valves

Different processes require specific valve geometries. Choosing the right configuration prevents mechanical binding and premature wear.

• Linear Valves (Globe & Diaphragm): Ideal for precise throttling and high-pressure drops. Globe valves offer tight shut-off, while diaphragm valves handle slurry or corrosive media without clogging.
• Rotary Valves (Ball & Butterfly): Best for high-flow, low-pressure drop applications. They quarter-turn quickly, making them excellent for fast isolation.
• Wegeventile: These act as the pilot operated solenoid valve, routing instrument air to the main actuator to open or close the line.

Ventiltyp	Bewegung	Gemeinsame Anwendung
Durchgangsventil	Linear	Throttling, high-pressure steam
Kugelhahn	Vierteldrehung	Quick isolation, high-flow fluids
Absperrklappe	Vierteldrehung	Large volume water or air systems
Membranventil	Linear	Slurries, hygienic chemical loops

How Pneumatic Actuators and Valves Work Together

An actuated valve relies on a simple partnership: the actuator provides the muscle, and the valve body manages the fluid.

When your controller sends a 4-20mA control loop signal, hat das electro pneumatic positioner alignment system translates that current into a specific air pressure. This compressed air fills the actuator chamber, pushing against a diaphragm or piston.

• Kurz und doppeltwirkender Zylinder, air feeds into both sides of the piston to drive it open and closed.
• Kurz und pneumatischer Stellantrieb mit Federrückstellung, air fights against heavy internal springs to move the valve; if air pressure drops, the springs force the valve into its fail-safe position.

This mechanical force moves the stem, directly shifting the valve plug or disc to control line flow. If the air supply is dirty or the valve stroke length tracking drifts, this partnership breaks down, resulting in sluggish response or total valve failure.

Troubleshooting Air Operated & Actuated Valves in Industrial Applications: Common Failure Symptoms

When automated lines slow down or stop, the culprit is often a failing pneumatic valve assembly. Recognizing the early warning signs of pneumatic actuator troubleshooting saves thousands in unscheduled downtime.

---

Sluggish or Delayed Valve Response

A valve that hesitates or moves like it is underwater signals an immediate system drop in efficiency. This lag disrupts precise process timing and product quality.

• Druckabfälle: Compressed air pressure fluctuations starve the actuator of the force needed to stroke quickly.
• Friction Overload: Hoch packing gland adjustment friction or a degrading stem seal drags down mechanical movement.
• Exhaust Blockages: Clogged silencers or restricted quick-exhaust valves trap air, slowing down the return stroke.

---

Valve Stuck or Unresponsive to Signals

A total refusal to move is a critical failure that requires isolating the control system from the physical hardware immediately.

Mögliche Ursache	Zu prüfende Komponente	Quick Fix
Directional control valve stuck	Spule des Magnetventils	Tap gently or cycle manually to clear stiction.
Mechanical binding in valves	Valve Stem / Trim	Inspect for bent stems or internal debris jamming the seat.
Kein Steuersignal	4-20mA control loop signal	Verify loop current with a multimeter at the positioner.

---

Excessive Valve Noise and Vibration

Strange sounds from your process line are cry for help from your hardware. Left unchecked, vibration literally shakes valve internals apart.

• Chatter and Hammering: Rapid cycling often points to an uncalibrated electro pneumatic positioner alignment issue or mismatched actuator sizing.
• Acoustic Screaming: High velocity gas or liquid passing through a damaged valve seat leakage class creates severe cavitation and aerodynamic noise.
• Loose Hardware: Check the mounting bracket and coupling; loose connections create physical slop and vibration.

---

Inaccurate Flow Control and Calibration Drift

When your control room demands a 50% open position but the actual flow doesn’t match, you are dealing with control valve calibration drift.

• Feedback Slippage: Die Verbindung zwischen dem linear vs rotary actuators and the positioner or limit switch box feedback unit has slipped.
• Positioner Wear: Internal pilot valves or nozzles inside the positioner are clogged with moisture or oil, throwing off the calibration.
• Frühjahrsmüdigkeit: Kurz und spring return failure modes scenario, a weakened or broken internal spring fails to counteract the air pressure accurately.

---

Isolation Diagnostics: Is It a Valve Body or Actuator Problem?

To fix the issue quickly, you must divide and conquer. Use this quick isolation routine to pinpoint whether the fault lies in the top-work (actuator) or the bottom-work (valve body).

The Isolation Test: Safely disconnect the actuator stem coupling from the valve stem. Manually stroke the valve using a lever or wrench, and independently apply regulated shop air to test the actuator.

• If the actuator moves smoothly alone: Das Problem ist, mechanical binding in valves, tight packing, or trim damage inside the valve body.
• If the actuator still struggles or leaks air: The issue is worn double acting cylinder seals, a torn diaphragm, or a faulty control accessory.

Primary Causes of Pneumatic Actuator and Valve Issues

Wenn die Funktion troubleshooting air operated & actuated valves in industrial applications, finding the root cause quickly keeps your plant running. System failures rarely happen without a reason. Usually, they stem from a few common mechanical, pneumatic, or electrical issues.

Air Supply Quality: Pressure Fluctuations and Moisture/Oil Contamination

Bad air is the number one killer of pneumatic systems. To prevent premature failure, your system must meet strict instrument air quality standards.

• Compressed Air Pressure Fluctuations: If your line pressure drops below the actuator’s minimum rating, the valve won’t stroke fully or will move sluggishly.
• Feuchtigkeitskontamination: Water washes away factory grease, leading to corrosion inside the actuator cylinder. In cold environments, this moisture freezes and completely blocks operation.
• Ölverunreinigung: Carryover oil from older compressors degrades rubber seals and diaphragms, causing them to swell, soften, and tear.

Contaminants and Blockages in Pilot Lines

Small particles can cause massive system shutdowns. Rust, scale, and debris easily bypass degraded filters and lodge themselves inside narrow pilot lines.

• Directional Control Valve Stuck: Particulates score the internal spool of your control valves, causing them to jam mid-stroke.
• Orifice Clogging: A tiny piece of debris in a vorgesteuertes Magnetventil orifice will completely stop the pressure signal from reaching the main actuator.
• Exhaust Port Blockage: Mud daubers, insects, or paint can block the exhaust ports or silencers, trapping air inside the actuator and preventing it from venting.

Seal Wear, Mechanical Binding, and Packing Friction

Mechanical wear increases friction until the actuator can no longer overcome it.

• Double Acting Cylinder Seals: Internal piston seals wear down over millions of cycles, allowing air to bypass the piston. This kills the pressure differential needed for movement.
• Mechanical Binding in Valves: Misaligned stems, bent linkages, or overtightened packing gland adjustment nuts create massive friction.
• Diaphragm Failures: In diaphragm-style actuators, constant flexing eventually causes the rubber material to crack, resulting in immediate pressure loss.

Electrical, Solenoid Valve, and Smart Positioner Malfunctions

Even if your air supply is perfect, a loss of control signals will paralyze your setup.

• 4-20mA Control Loop Signal Issues: Corroded terminals, loose wires, or electromagnetic interference (EMI) can distort the control signal, causing control valve calibration drift.
• Electro Pneumatic Positioner Alignment: If the feedback linkage shifts or loses calibration, the positioner will misread the actual valve stroke length tracking, leading to constant hunting or overshooting.
• Magnetventil-Durchbrennen: Overvoltage, internal short circuits, or continuous duty cycles without proper heat dissipation will burn out the solenoid coil, preventing it from shifting the air path.

Step-by-Step Troubleshooting Guide for Air Operated Valves

When your workflow hits a snag, a systematic approach to troubleshooting air operated & actuated valves saves hours of downtime. I always recommend starting with the simplest fixes before tearing down a complex actuator. Follow this field-tested sequence to get your pneumatic systems back online.

Safety Protocol: Depressurization and Lockout/Tagout (LOTO)

Before touching any hardware, safety is non-negotiable. Pneumatic actuators store significant energy in the form of compressed air and powerful internal springs.

• Stromquelle isolieren: Disconnect the electrical supply to solenoids and positioners.
• Bleed the Lines: Exhaust all residual air pressure from the actuator cylinders and supply lines.
• LOTO: Tragen Sie Lockout/Tagout (LOTO) safety protocols to ensure no one accidentally cycles the valve while your hands are in the “pinch zone.”
• Federspannung: Use extreme caution with spring return failure modes, as the spring remains under tension even when air is removed.

Visual Inspection and Baseline Diagnostics

You can often spot the culprit just by looking. I start with a “walk-around” to check for obvious mechanical or environmental issues.

• Lose Verbindungen: Check for vibrating tubing or loose mounting bolts on the Endschalterkasten.
• Corrosion and Debris: Look for salt buildup or heavy grime that could cause mechanical binding in valves.
• Ausrichtung: Sicherstellen, dass die linear vs rotary actuators are properly aligned with the valve stem; even a slight tilt creates friction that stalls the stroke.

Testing and Verifying Air Supply Pressure and Flow

If the air isn’t right, the valve won’t move right. Instrument air quality standards are often overlooked, but they are the lifeblood of the system.

Kontrollpunkt	Anforderung	Symptom des Versagens
Versorgungsdruck	Must meet the actuator’s PSI rating	Slow stroke or “chattering”
FRL-Einheit	Filter must be clean; Lubricator filled	Clogged lines or dry seals
Fließrate	Consistent CFM (Cubic Feet per Minute)	Stalling under process load

Überprüfen Sie, dass compressed air pressure fluctuations aren’t dropping below the minimum required to overcome the valve’s breakout torque.

Identifying and Locating Internal (Seat) and External (Packing) Leaks

Leaks are the most common efficiency killers in troubleshooting air operated & actuated valves.

1. Externe Lecks: Spray soapy water on the **

Troubleshooting Procedures for Specific Actuator Configurations

Doppeltwirkende pneumatische Antriebe

Double acting pneumatic actuators rely on compressed air to power both the opening and closing strokes. When pneumatic actuator troubleshooting points to a double acting setup, the issue usually stems from internal bypass leaks.

If the valve fails to move or moves sluggishly, perform these checks:

• Check the Piston Seals: Apply air pressure to Port A and check for leakage out of Port B. If air escapes from the opposite port, your double acting cylinder seals are worn and bypassing air.
• Inspect Directional Control Valves: A directional control valve stuck in a mid-position will stall the actuator. Verify that the control valve shifts completely when energized.
• Verify Dual-Port Pressure: Ensure full system pressure is reaching both sides of the actuator. Air pressure drops on one side will cause erratic or incomplete cycles.

---

Spring Return Pneumatic Actuators

Spring return actuators use air pressure to stroke in one direction and mechanical springs to force the valve back to its fail-safe position. Spring return failure modes usually involve mechanical binding or broken springs.

To get these units back online, target these areas:

• Test the Fail-Safe Function: Cut the air supply completely to see if the valve fully returns to its fail-safe state. If it stops halfway, check for mechanical binding in valves or a fatigued spring cartridge.
• Clean the Breather Vents: Spring-side chambers breathe in ambient air. Blocked or corroded vents create backpressure, stalling the spring stroke.
• Monitor Stroke Length: Arbeiten jederzeit weiterbearbeiten können. Jede Präsentation und jeder KI-Avatar, den Sie von Grund auf neu erstellen oder hochladen, valve stroke length tracking to confirm the springs are achieving a full shutoff against the process line pressure.

---

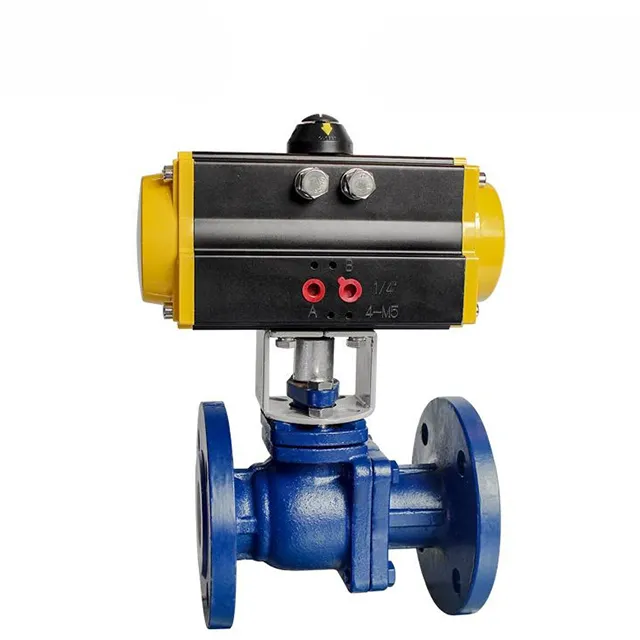

Pneumatic Rotary vs. Cylinder Actuators

Troubleshooting changes depending on whether you are dealing with linear vs rotary actuators. Rotary options (rack-and-pinion or scotch yoke) handle quarter-turn valves like balls and butterflies, while cylinder actuators handle linear globe and gate valves.

Aktuatortyp	Häufige Fehlerquellen	Quick Diagnostic Action
Pneumatischer Drehantrieb	Backlash in the pinion, worn o-rings, loose limit switch box feedback	Check for physical play in the stem coupling and realign the switch box targets.
Cylinder Actuator (Linear)	Verschlissen packing gland adjustment, bent stems, piston seal bypass	Inspect the actuator stem for scoring and check for external air leaks around the top rod seal.

When working with rotary units, ensure the electro pneumatic positioner alignment is perfectly centered with the actuator shaft to prevent calibration drift and sluggish control loop signals.

Advanced Diagnostic Techniques for Industrial Valves

When standard troubleshooting isn’t enough, we turn to advanced diagnostics to pinpoint issues before they cause a total system shutdown. These methods help us see what’s happening inside the hardware without needing to pull the valve out of the line.

Using Thermal Imaging for Valve Diagnostics

Thermal imaging is a game-changer for identifying valve seat leakage class issues. By scanning the valve body while it is in the closed position, we can spot temperature gradients that indicate fluid bypassing the seat. If you see a hot spot downstream of a valve that should be shut tight, you’ve likely found an internal leak. This non-invasive check allows us to prioritize repairs during scheduled downtime rather than reacting to a process failure.

Predictive Technology and Proactive Rectification

We rely on digital valve stroke length tracking and signature analysis to catch performance degradation early. By comparing the current stroke profile against the baseline, we can identify:

• Mechanical binding in valves that causes the actuator to work harder than necessary.
• Control valve calibration drift that signals the need for a recalibration of the electro-pneumatic positioner alignment.
• Early signs of diaphragm fatigue or seal wear before they lead to a complete pneumatic actuator failure.

Evaluating Flow Control Components

To ensure peak efficiency, we perform a deep dive into the health of the entire control loop. This involves monitoring the 4-20mA control loop signal for stability and checking the limit switch box feedback to confirm the valve is hitting its end-of-travel marks accurately. We also inspect the vorgesteuertes Magnetventil response times to ensure that air delivery is instantaneous. By analyzing these components as a single ecosystem, we can rectify minor inconsistencies before they evolve into costly operational bottlenecks.

Preventative Maintenance and Solutions for Actuated Valves

Immer einen Schritt voraus Fehlersuche bei pneumatisch betätigten Ventilen in industriellen Anwendungen means shifting from “fix-it-when-it-breaks” to a solid preventative routine. Consistent care prevents the most common pneumatic failures and keeps your production line running without surprise shutdowns.

---

Regular Cleaning and Filter-Regulator-Lubricator (FRL) Replacement

Das Filter-Regler-Schmierstoff-Einheit (FRL) is the lifeline of your pneumatic system. If

Frequently Asked Questions About Actuated Valve Troubleshooting

What causes a pneumatic actuator to fail to stroke fully?

When a pneumatic actuator won’t complete its full stroke length tracking, the issue usually boils down to insufficient air pressure or mechanical resistance. Compressed air pressure fluctuations or an incorrectly adjusted filter regulator lubricator (FRL) unit can deprive the actuator of the force needed to overcome the internal spring rate. Alternatively, look for mechanical binding in valves caused by over-tightened packing glands, bent valve stems, or internal debris jamming the valve seat.

How do you differentiate between mechanical, pneumatic, and electrical valve faults?

Isolating the root cause requires a systematic process of elimination across the 4-20mA control loop signal, air lines, and physical hardware:

• Elektrisch: Überprüfen Sie, ob die directional control valve stuck issue is caused by a missing control signal. If the limit switch box feedback or positioner isn’t reacting to a 4-20mA change, the fault is electrical.
• Pneumatisch: If the signal is present but the valve is dead, check the instrument air. Look for line leaks, clogged exhaust ports, or failed double acting cylinder seals.
• Mechanisch: If air is venting properly and the actuator moves when uncoupled, but the valve stem remains frozen, you are dealing with a mechanical seize or high packing gland adjustment Reibung.

What are the signs of pneumatic solenoid valve burnout?

A burned-out vorgesteuertes Magnetventil typically manifests as a complete failure to shift when energized, accompanied by an unusually hot solenoid coil or a distinct burning smell. On the control side, you will notice solenoid valve failure symptoms like a lack of audible “click” when power is applied, or electrical testing will reveal an open circuit (infinite resistance) across the coil windings.

How can you detect internal seat leakage vs. actuator piston leakage online?

Detecting the exact leak location while online saves hours of unnecessary teardown time:

• Actuator Piston Leakage: Für einen doppeltwirkender Zylinder, apply air to one port and check for continuous exhaust blowing out of the opposite, unpressurized port. For a spring return failure mode test, check the vent port for constant air discharge.
• Internal Seat Leakage: This relates directly to the valve seat leakage class. Use an acoustic transmitter or a simple stethoscope on the valve body downstream. If you hear a continuous hissing sound while the valve is fully closed, process fluid is bypassing the seat.

How often should industrial actuated valves undergo routine maintenance?

Most linear vs rotary actuators in standard industrial environments require a comprehensive inspection every 6 to 12 months. However, service intervals depend heavily on your specific instrument air quality standards and cycle frequency. Highly critical loops prone to control valve calibration drift require quarterly check-ups, including electro pneumatic positioner alignment verifications and a routine diaphragm replacement procedure according to factory runtime schedules.

Need Expert Assistance? Contact Us for Valve Solutions

If your team is facing complex system downtime, we are here to help. We provide direct access to flow control specialists who can resolve your toughest troubleshooting air operated & actuated valves challenges quickly.

Custom Troubleshooting & Technical Support

When standard fixes fail, our engineering team steps in. We analyze your specific system data to pinpoint the root cause of pneumatic actuator troubleshooting issues, from solenoid valve failure symptoms zu control valve calibration drift.

• Technische Hotline rund um die Uhr: Immediate phone support for urgent field failures.
• Remote Data Diagnostics: Real-time review of your 4-20mA control loop signal , electro pneumatic positioner alignment.
• Ursachenanalyse: Detailed teardown analysis to prevent recurring component failures.

Request a Quote for Replacement Valves & Actuators

Upgrade your infrastructure with industrial-grade flow control components built for harsh environments. We supply high-performance solutions that meet strict instrument air quality standards und verhindern compressed air pressure fluctuations.

Produktkategorie	Verfügbare Konfigurationen	Hauptfunktionen
Pneumatische Antriebe	Frühlingsrückkehr & doppeltwirkender Zylinder	Schwerlast Membranersatz designs, corrosion-resistant housings
Steuerventile	Linear vs rotary actuators, ball, butterfly, globe	Hoch valve seat leakage class ratings, optimized valve stroke length tracking
Zubehör	Solenoid valves, limit switch box feedback Bereiche	Vorgesteuertes Magnetventil options, heavy-duty filter regulator lubricator frl unit

Schedule On-Site Maintenance and Calibration Services

Bring our valve experts directly to your facility. We handle everything from routine preventative maintenance to emergency rebuilds while strictly adhering to your plant’s lockout tagout loto safety protocol.

• Vor-Ort-Kalibrierung: Precision alignment of smart positioners to eliminate mechanical binding in valves.
• Turnkey Rebuilds: In-line packing gland adjustment and full seal kit replacements.
• Systemprüfungen: Complete evaluation of your air prep setups to stop directional control valve stuck issues before they cause unexpected shutdowns.
