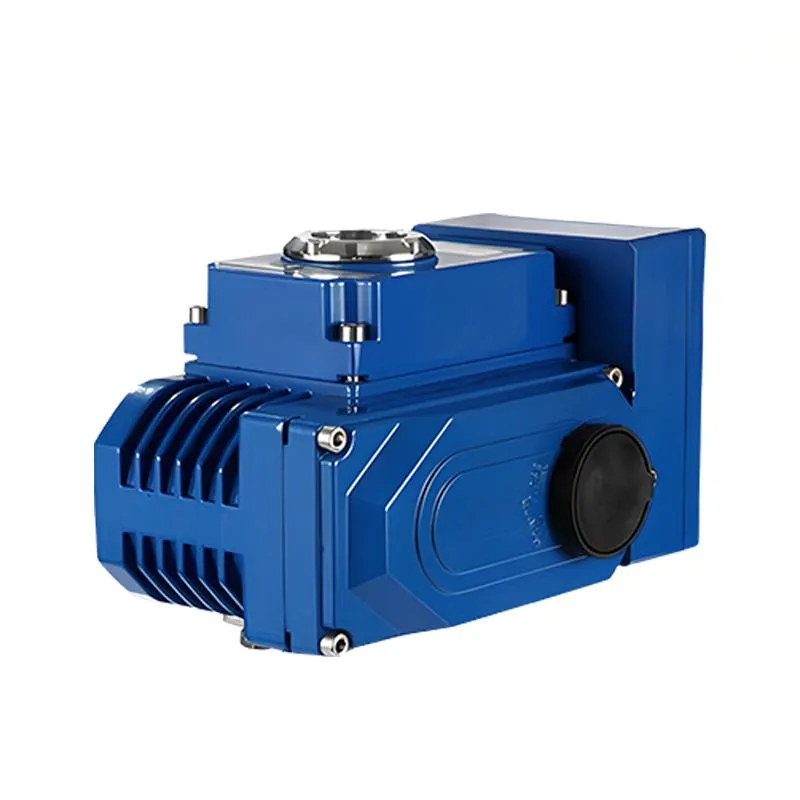

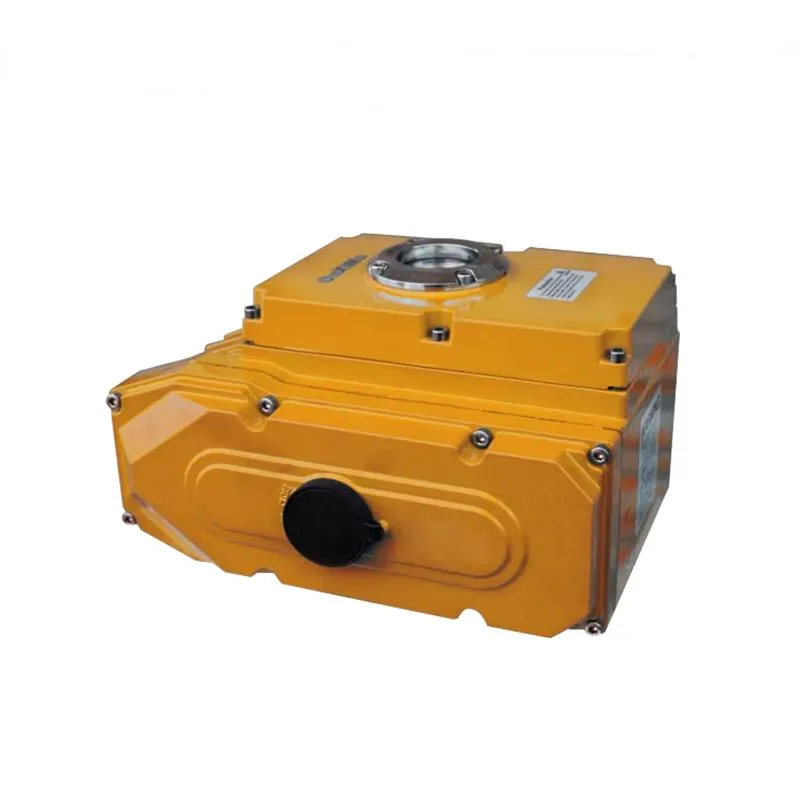

DELCO DKV-IP67 Small Electric Actuator High Torque (4000 N.m) & Wide Angle Control
The DELCO DKV-IP67 Small Electric Actuator is a high-performance, compact solution designed for automating valves requiring rotational ranges from 0° up to 270°. Despite its small size, it delivers a powerful maximum output torque of 4000 N.m. This actuator operates on standard AC power supplies and utilizes precise 4-20mA or 0-10VDC proportional control signals to achieve accurate valve positioning. Its IP67 protection rating ensures reliable operation in demanding environments. The DKV series is extensively applied across critical sectors, including water treatment, chemical processing, power plants, and HVAC systems.
Features
A compact electric actuator from the DELCO DKV-IP67 series, offering high torque up to 4000 N.m and precise proportional control over a wide rotational range of 0°to 270°for various industrial valves.6
✅Wide Rotational Range (0°-270°):Unlike standard quarter-turn actuators, the DKV series is capable of controlling rotation from 0°up to 270°, making it ideal for multi-port valves or specialized dampers requiring extended travel.
✅Exceptional High Torque Output:The actuator delivers a significant maximum output torque of 4000 N.m, providing the force necessary to reliably operate large or high-pressure valves despite its compact "small actuator" designation.
✅Precise Modulating Control:Utilizes standard industrial control commands (4-20mA current or 0-10VDC voltage signals) to achieve precise positioning and throttling control required for process automation.
✅Robust IP67 Protection:The IP67 rating ensures high ingress protection against dust and temporary immersion in water, guaranteeing reliability in harsh, wet, or dirty industrial environments.
✅Broad Industrial Application:The DKV series is highly versatile, finding extensive use in high-demand industries such as petroleum, chemical processing, shipbuilding, power generation, and water utility control.

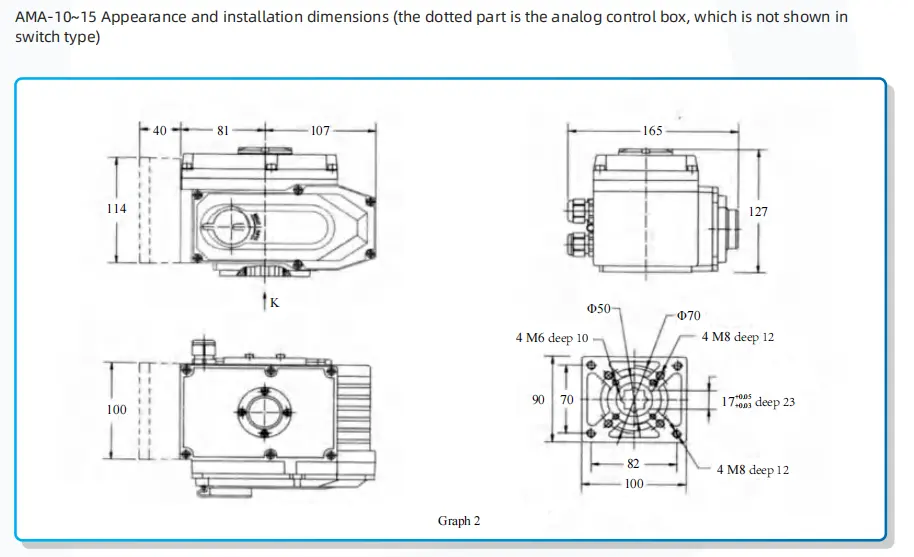

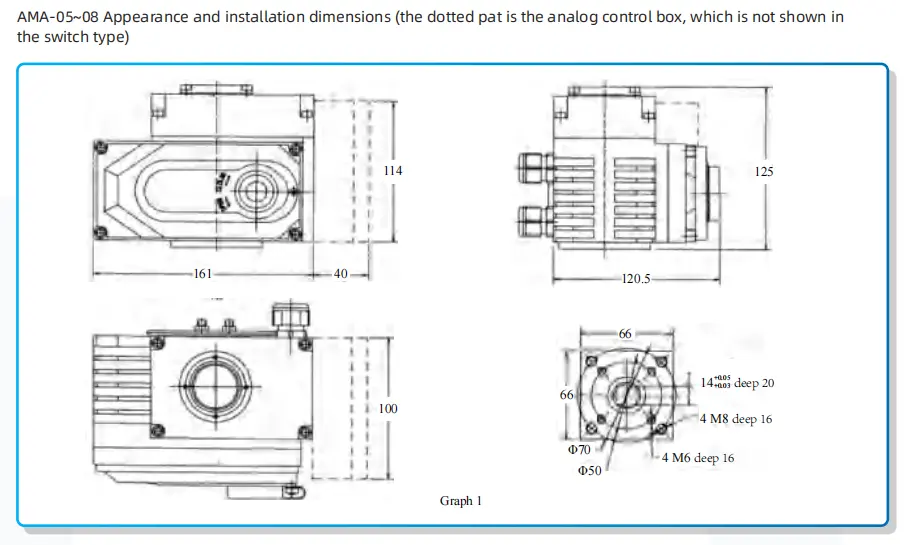

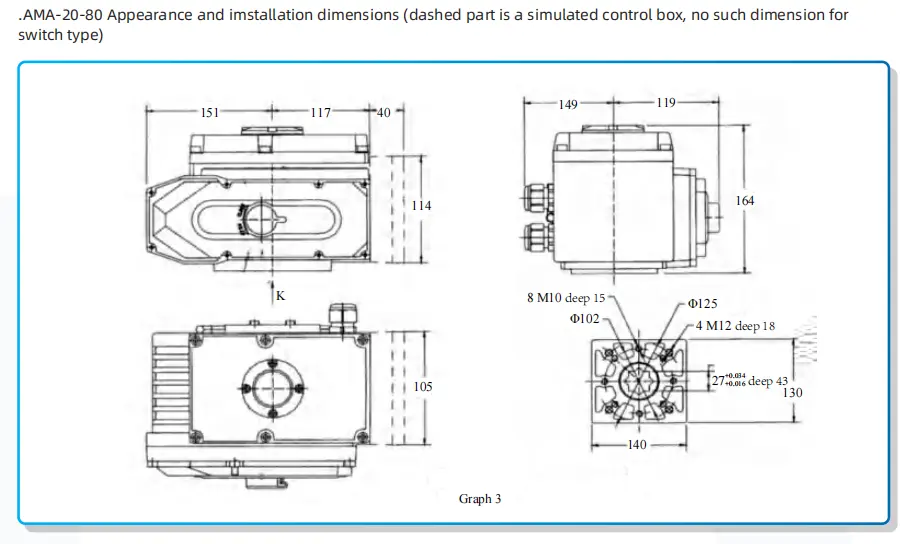

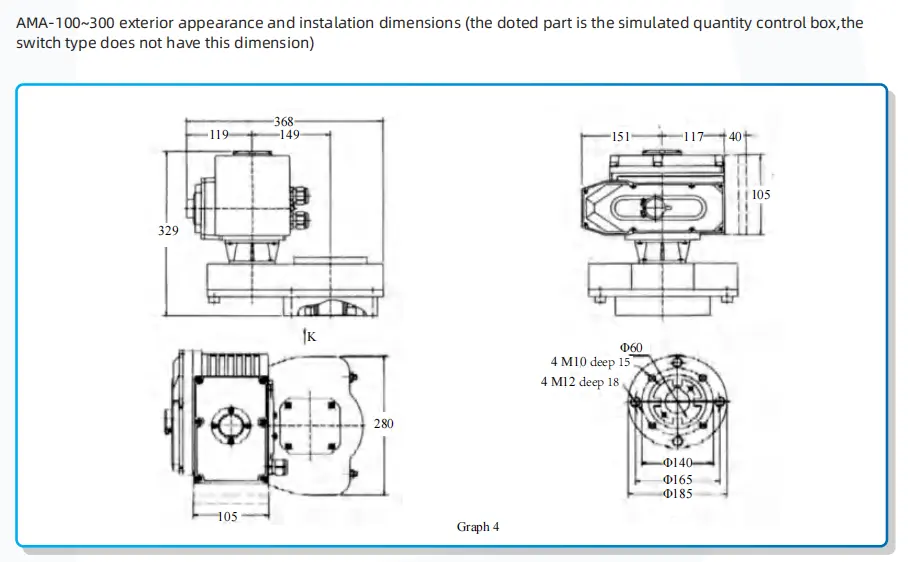

Parameter and Drawing
Industry Applications
-
Water Treatment
Chemical dosing (chlorine, pH adjusters), filtration systems -
Chemical Processing
Acid/alkali transfer, solvent blending lines -
HVAC Systems
Chilled water control, heat recovery units -
Aquaculture
Seawater flow diversion, ozone injection -
Plating Plants
Electrolyte management, waste neutralization
