Integrated mounting pad allows direct bolting of pneumatic actuators, eliminating brackets, couplings, and mechanical play for superior positioning accuracy.

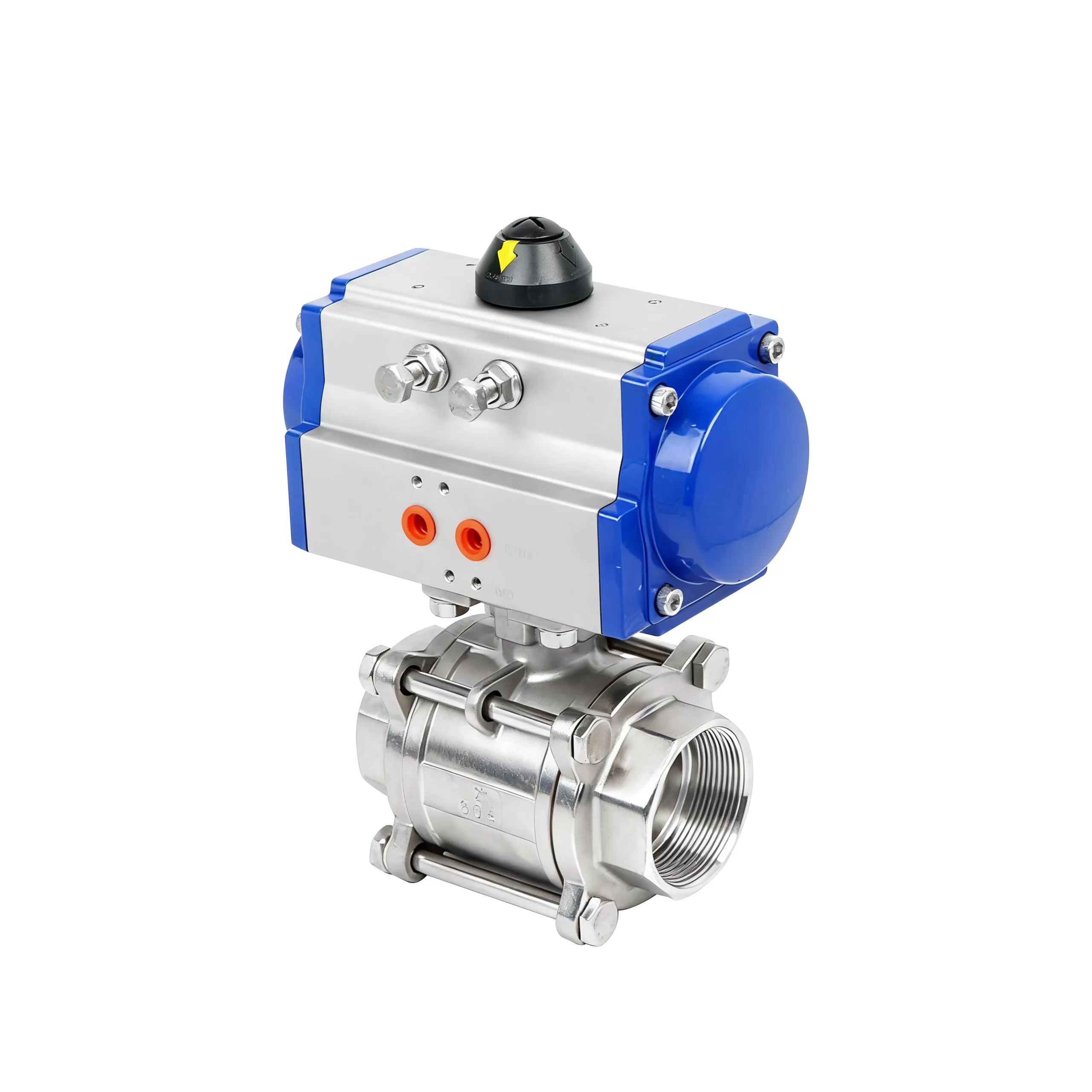

The 3-piece design allows operators to swing the central body clear by removing three body bolts, servicing soft seats and seals without rotating pipe ends.

Rated to 6.9 MPa (1000 psi) cold working pressure across Water, Oil, and Gas media, providing a substantial safety factor in fluctuating industrial piping.

Stem seals feature self-adjusting Belleville washer springs that continuously compensate for thermal expansion and million-cycle wear, preventing fugitive leaks.

Hard-anodized dual-piston rack-and-pinion actuators deliver explosive, sub-0.5-second quarter-turn operation for safety interlocks and emergency shutdown (ESD).

Precision CNC-machined NPT (ASME B1.20.1), BSPT (ISO 7-1 RC), and BSPP (ISO 228-1 G) thread profiles ensure tight, galling-free makeup with piping systems.

Q1: Why choose a 3-piece swing-out design over a 2-piece threaded valve for skids?

In rigid, threaded piping networks, removing a 2-piece valve requires uncoupling pipe unions or spinning the entire pipe run. The 3-piece design allows the center valve body and pneumatic actuator to swing out or drop out completely by loosening tie bolts, leaving the threaded end caps attached to the piping, reducing maintenance labor by over 75%.

Q2: What is the benefit of an ISO 5211 direct-mount automation platform?

Traditional valve automation uses custom fabrication brackets and shaft couplings. Delco’s ISO 5211 direct-mount platform places the pneumatic actuator directly on the valve bonnet. This lowers the center of gravity, eliminates mechanical backlash, prevents bracket corrosion, and ensures strict stem alignment for longer packing seal life.

Q3: How do NPT and BSPT threads differ in high-cycle automated service?

NPT threads (ASME B1.20.1) have a 60° thread angle with flat crests and roots, predominantly used in North American and offshore installations. BSPT (ISO 7-1) features a 55° thread angle with rounded crests and roots, standard across European and Asian markets. Both provide self-sealing mechanical joints when assembled with compatible anaerobic PTFE thread sealants.

Q4: Can these threaded pneumatic ball valves handle steam utility lines?

Yes, when fitted with Carbon-Reinforced PTFE (R-PTFE) or PEEK seats and graphite stem packing rings. In low-to-medium pressure plant steam services (up to 1.0 MPa saturated steam), Delco’s live-loaded stem packing compensates for high thermal cycling without leaking.
