Precision CNC-machined and electropolished interior wetted surfaces eliminate microscopic pits and grain boundaries, preventing microbial adherence and protein fouling.

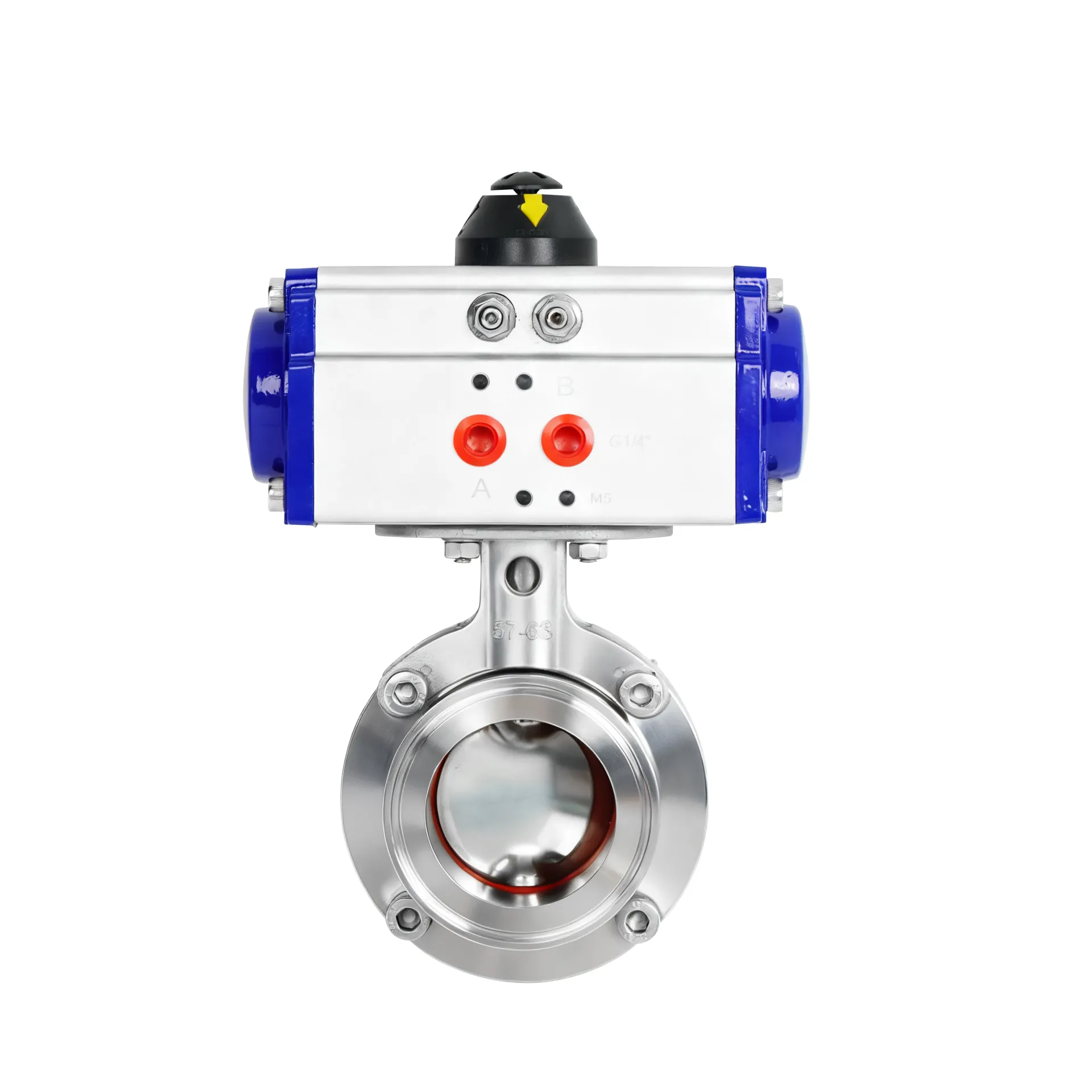

Slim, hydrodynamically contoured 316L disc provides an ultra-low profile in open position, reducing product shear while ensuring self-draining flow without dead pockets.

Specialized food-grade EPDM, FKM, and Silicone elastomeric liners endure repeated exposure to hot caustic wash, nitric acid CIP rinses, and saturated steam up to 140°C.

Actuators are housed in polished AISI 304/316 stainless steel or protective composite enclosures with IP67/IP69K sealing to withstand direct high-pressure hose-down cleaning.

All wetted materials meet FDA 21 CFR 177.2600, USP Class VI biological reactivity standards, and 3-A Sanitary requirements with full EN 10204 3.1 material traceability.

Direct pneumatic action strokes the disc in 0.3 to 0.6 seconds, delivering precise volumetric cutoff during high-speed aseptic filling, tank routing, and CIP sequence changes.

Q1: Why are butterfly valves favored over ball valves in sanitary process lines?

Sanitary butterfly valves feature an ultra-compact footprint, weigh significantly less, and contain no internal body cavities or dead spaces where liquids can pool. Their straight-through bore is highly cost-effective and exceptionally easy to clean thoroughly during automated CIP flush cycles compared to non-cavity filled ball valves.

Q2: What is the benefit of an integrated C-Top control head on sanitary actuators?

A C-Top combines the pneumatic solenoid pilot valve, inductive position sensors, microprocessors, and high-visibility 360-degree LED visual indicators inside a single sealed IP67/IP69K dome directly mounted to the actuator. This eliminates external air hoses, wiring junction boxes, and dirt traps, creating a streamlined, cleanroom-ready washdown envelope.

Q3: How do you select between EPDM, Silicone, and FKM seats for food plants?

EPDM is the industry standard for dairy, beer, and water-based foods due to its superior mechanical resilience and resistance to caustic CIP wash and hot steam. Silicone (VMQ) offers superior odor/taste neutrality and low-temperature flexibility for syrups and confectionery. FKM is chosen when fatty media, animal oils, or aromatic flavor extracts are present.

Q4: Can the valve withstand automated Clean-in-Place (CIP) chemical circulation?

Yes. The combination of forged 316L metallurgy and peroxide-cured EPDM or FKM liners resists typical CIP regimes consisting of 2% sodium hydroxide (caustic) wash at 85°C followed by 1% nitric acid sanitization and 130°C pure steam cycles without seat swelling, discoloration, or seal breakdown.
