Drilled labyrinth cages divide high differential pressures across radial throttling stages, preventing localized pressure from dropping below vapor pressure (Pv) and eliminating cavitation erosion and vibration.

CNC-machined plugs deliver mathematically verified Equal Percentage (EQP), Linear (LIN), and Quick-Opening (QO) characteristics complying with IEC 60534-2 across broad 50:1 to 100:1 turndown ratios.

Internal balance ports equalize static line pressure across the upper and lower faces of the plug. Combined with dynamic PTFE/carbon piston rings, operating thrust is reduced by up to 80%.

Offering Class IV standard metal-to-metal seating, precision-lapped Class V for high-pressure steam drains, and resilient soft-seated Class VI (PTFE/PEEK inserts) for zero-bubble tight isolation.

Hydroformed multi-ply metal bellows bonnets (AISI 316Ti, Hastelloy, Inconel 625) backed by safety graphite packing guarantee hermetic containment conforming to ISO 15848-1 Class A and TA-Luft.

The entire internal assembly (plug, cage, seat ring, and guide) extracts through the top bonnet opening while the body remains welded or bolted in-line, slashing outage maintenance labor by up to 70%.

Field-reversible multi-spring diaphragm actuators utilize peripheral helical springs to reduce overall assembly height and weight by 30% while maximizing linear thrust linearity.

• Air-to-Open (Fail-Closed): Spring force holds valve closed; air signal drives open.
• Air-to-Close (Fail-Open): Spring force holds valve open; air signal drives closed.
• High-Thrust Cylinder Option: Double-acting pneumatic pistons delivering up to 50 kN.

Microprocessor-controlled digital positioners provide seamless, high-speed digital feedback into DCS automation loops with zero mechanical deadband.

• Protocols: HART 7, Foundation Fieldbus H1, Profibus PA, and 4-20mA I/O.
• Non-Contact Feedback: Magnetoresistive sensor eliminating mechanical wear.
• Predictive Diagnostics: Online travel tracking, friction monitoring, and Partial Stroke Testing.

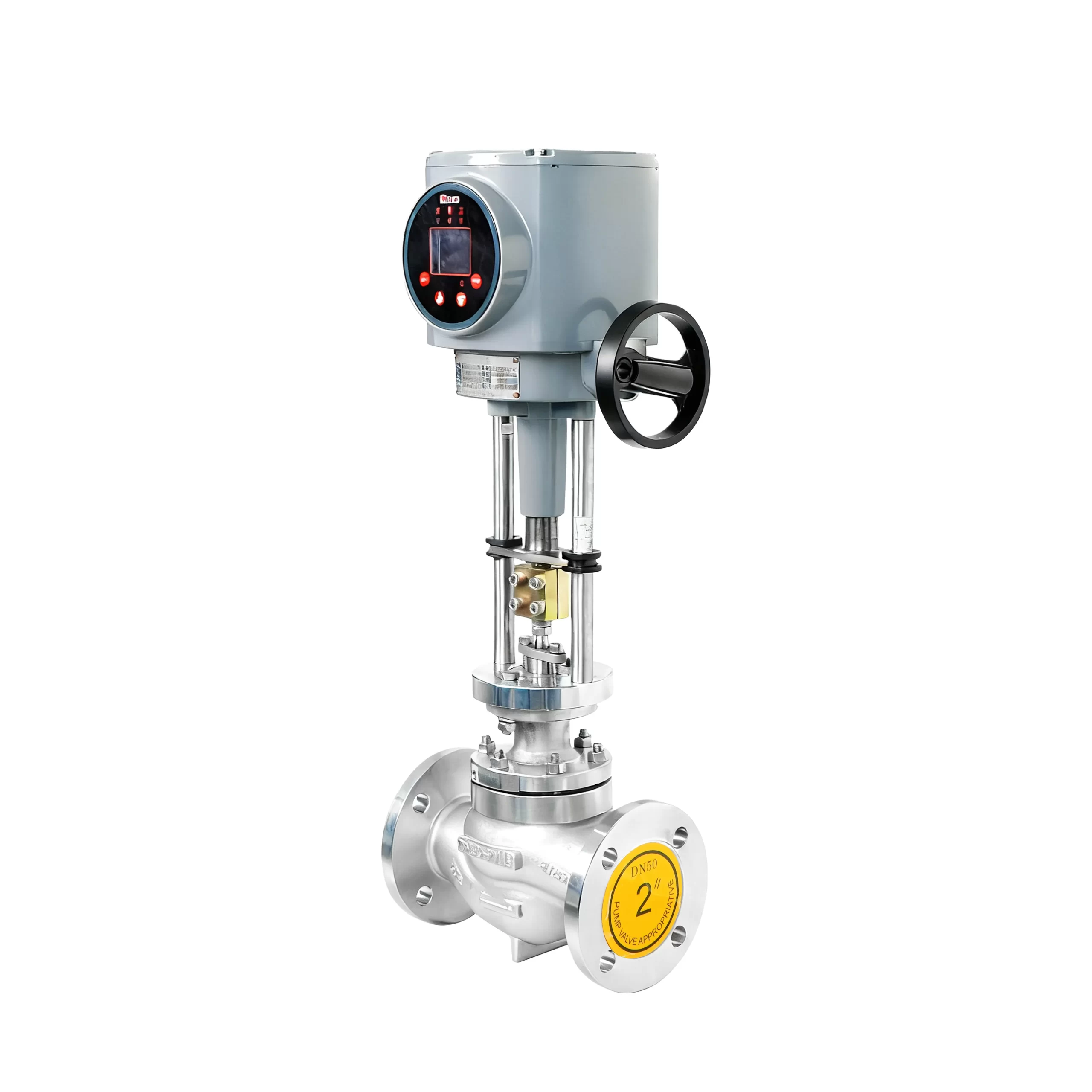

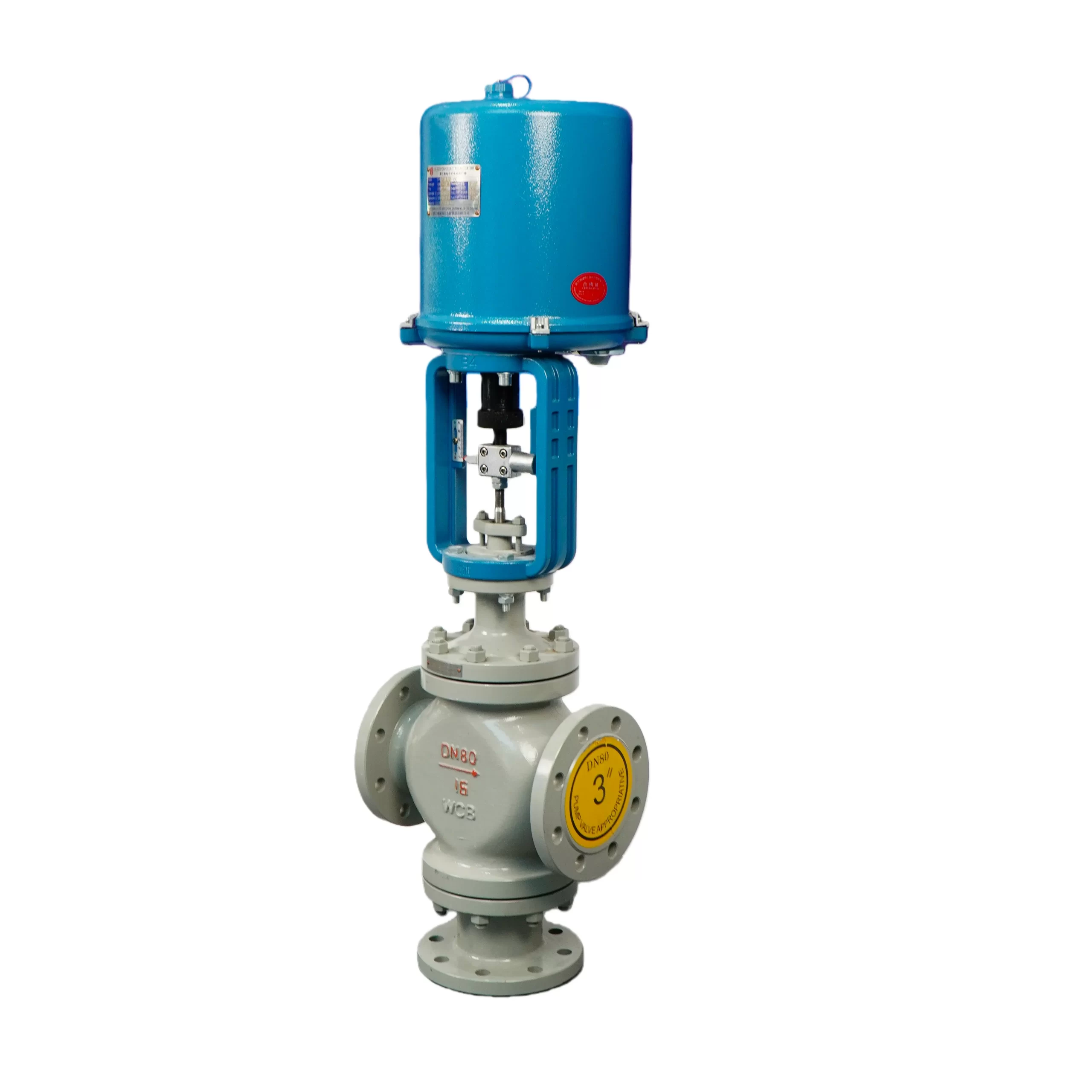

Heavy-duty linear electric drives engineered for airless installations, combining non-intrusive commissioning with high-thrust positioning accuracy down to 0.1%.

• Variable Speed Drive: Auto-deceleration near seat prevents mechanical slamming.
• Digital Protocols: Modbus RTU, Profibus DP, Ethernet/IP, and analog 4-20mA.
• Explosion-Proof Security: ATEX/IECEx Ex-d IIC T4/T6 double-sealed IP68 enclosure.

Power-independent mechanical actuators engineered for self-operated pressure regulators and capillary temperature control valves.

• Calibrated Springs: High-tensile silicon-chrome springs for repeatable setpoints.
• Pressure Balancing: Internal metal bellows or dynamic rolling diaphragms.
• Capillary Armored Assembly: Stainless steel armored capillary linking thermal bulbs.

Q1: How do Delco's multi-stage cage trims distinguish between and prevent cavitation and flashing?

Cavitation and flashing both initiate when static pressure drops below fluid vapor pressure (Pv) at the vena contracta. Flashing occurs when downstream pressure remains below Pv; Delco combats flashing via hardened trims (Stellite #6/tungsten carbide) and angle-style bodies with expanded outlets. Cavitation occurs when pressure recovers above Pv, causing vapor bubbles to implode violently against metal walls. Delco's multi-stage drilled labyrinth cages divide the total pressure drop into small, discrete steps, keeping fluid pressure consistently above Pv to eliminate bubble formation entirely.

Q2: Why is a Pressure-Balanced Cage design mandatory for high-pressure differential applications?

In an unbalanced top-guided single-seated valve, the actuator must overcome the full differential pressure (ΔP) acting across the entire surface area of the plug. In high-pressure steam or boiler feed lines, this unbalance force can exceed 80 kN, demanding massive actuators. Delco's pressure-balanced plug features internal equalization channels allowing high-pressure fluid to enter the chamber above the plug. Because opposing hydraulic forces cancel each other out, net operating thrust is reduced to near zero, enabling smaller, faster, and far more responsive actuators.

Q3: What is the technical criterion for choosing between Equal Percentage (EQP) and Linear flow characteristics?

The selection depends on valve authority within the overall piping network. Equal Percentage (EQP) is recommended when the valve absorbs a variable percentage of total system pressure drop, or where line pressure drop decreases as flow increases (common in long pipelines and heat exchangers). EQP trims compensate for fluctuating system friction to maintain a linear installed characteristic. Linear (LIN) is specified when pressure drop across the valve remains relatively constant (high valve authority > 0.5), such as in liquid level control loops or direct boiler drum level feeds.

Q4: What are the primary engineering trade-offs when selecting between Self-Operated Regulators and Automated Control Valves?

Self-Operated Control Valves offer unmatched simplicity, zero energy consumption, zero signal wiring, and lower capital expenditure. However, they rely strictly on proportional P-band mechanics without reset (integral) action, exhibiting a slight setpoint "droop" as flow varies, with setpoints adjusted only locally. Automated Pneumatic/Electric Control Valves incorporate external sensors, transmitters, and advanced PID algorithms within DCS/PLC networks, eliminating setpoint offset, enabling remote setpoint adjustments, and providing live telemetry.
