Ultra-fast opening transient snaps the diaphragm open within 30 to 50 milliseconds, creating a steep pressure-rise front that delivers maximum cleaning impact to filter bags.

Fabric-reinforced thermoplastic elastomer (TPE) or high-grade Buna-N diaphragms endure continuous rapid flex cycles exceeding one million pulses without tear fatigue.

High-conductance internal geometry minimizes sonic choking and aerodynamic turbulence, delivering up to 25% higher peak air blast volume than conventional angled valves.

High-density pressure die-cast aluminum alloy body with chromate conversion coating provides porosity-free structural strength under cyclic pneumatic shock loads.

Available with direct-mounted IP65 encapsulated solenoid coils or pneumatic pilot fittings designed for connection to central remote pilot enclosure boxes.

Crisp, instantaneous shutoff transients eliminate trailing air bleeds, drastically reducing plant compressed air consumption and cutting air compressor operating costs.

Q1: How does a pulse solenoid valve dislodge cake dust inside a baghouse filter?

When the pilot opens, pressure above the diaphragm exhausts into the atmosphere, causing tank air pressure to instantly push the diaphragm upward. A supersonic blast of air shoots into the blowpipe and venturi tube, drawing in surrounding secondary air (multiplied by 3x–5x). This expanding pressure wave travels down the inside of the filter bag, flexing it violently outward and shattering the dust cake into the collection hopper.

Q2: What is the primary operational advantage of Submerged (Immersion) pulse valves over Right-Angle valves?

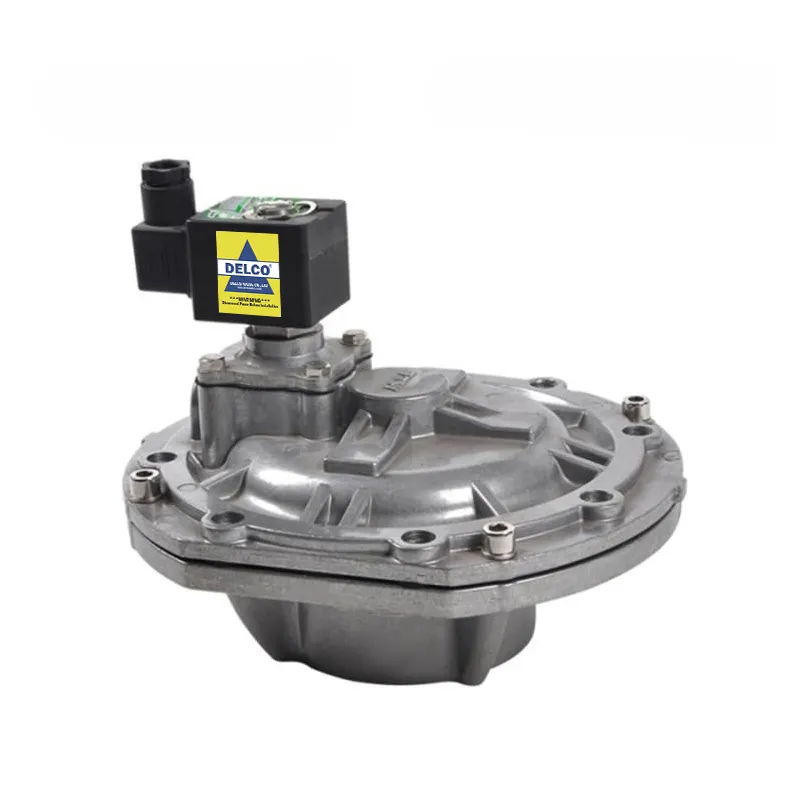

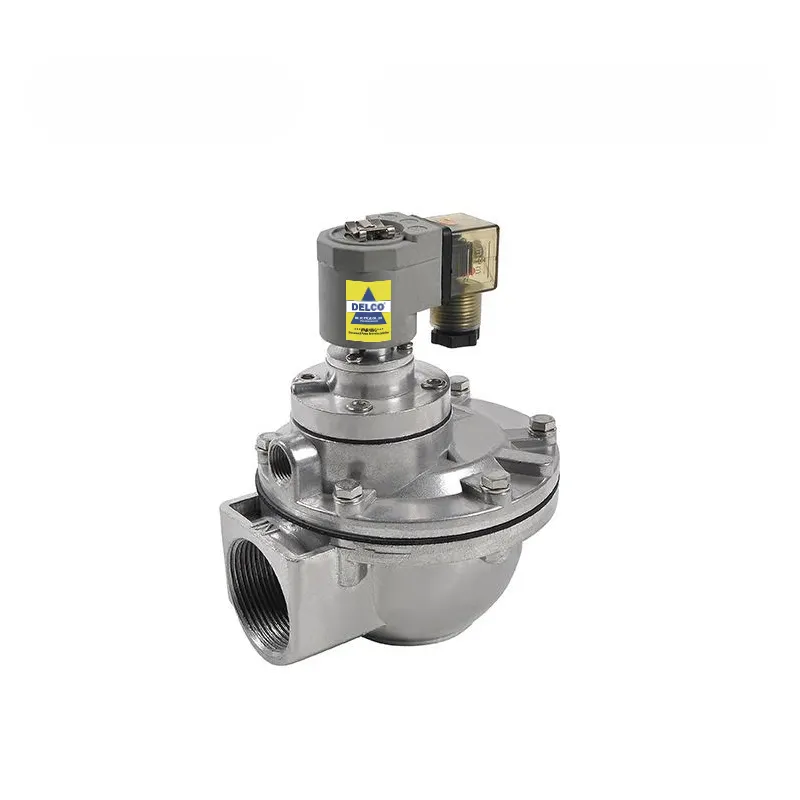

Right-angle valves mount externally and force compressed air through a 90-degree bend with pipe inlet restrictions. Submerged valves are bolted directly inside or on the bottom perimeter of the round air header tank. The valve seat sits inside the tank volume, providing straight-line flow with minimum pressure drop and delivering up to 30% higher peak cleaning pulse power.

Q3: Why are dual-diaphragm designs required for sizes larger than 1-1/2 inches?

Large pulse valves (2" to 3") contain large air volumes behind their main diaphragm. A small solenoid pilot orifice cannot exhaust this large volume quickly enough, leading to sluggish opening and wasted compressed air. Dual-diaphragm designs use a small primary diaphragm that acts as a high-flow intermediate pilot, dumping the main chamber almost instantaneously for maximum pulse impact.

Q4: What causes premature diaphragm failure in reverse-jet dust collectors, and how is it prevented?

Premature failure typically stems from moisture, compressor oil, or particulate contamination in the compressed air header, which degrades elastomers and clogs bleed orifices. Delco prevents this by utilizing oil-resistant molded TPE diaphragms, internal stainless bleed pins that self-clean during each pulse, and optional Viton diaphragms for high-temperature flue gas filtration up to 150°C.
