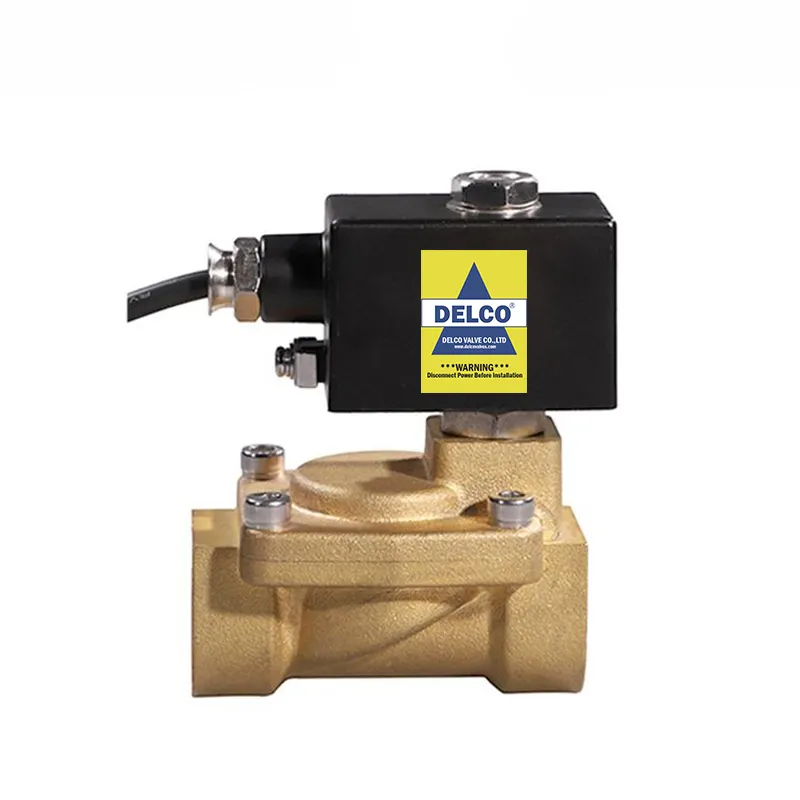

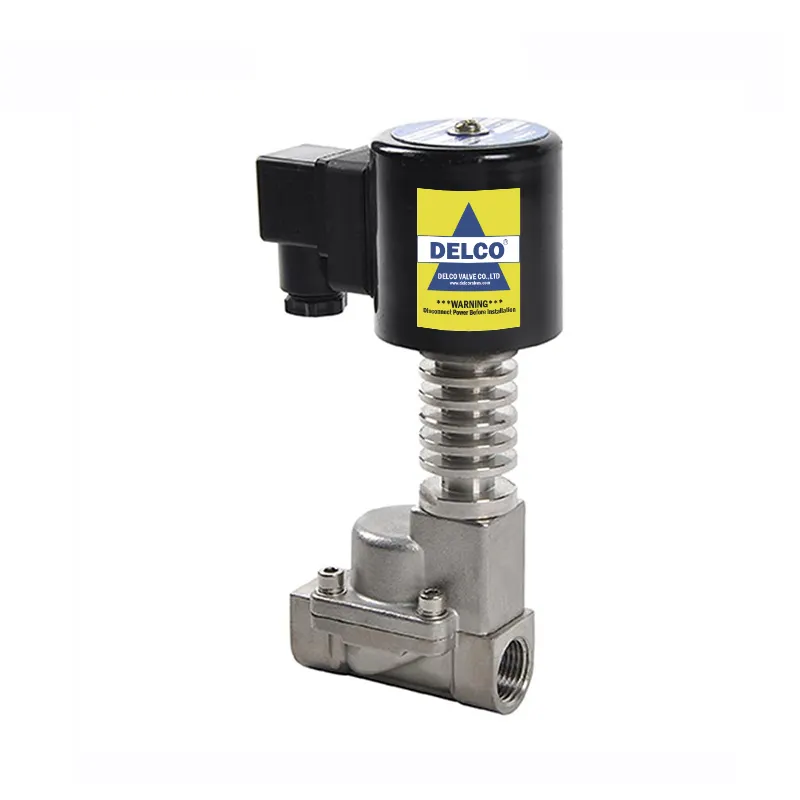

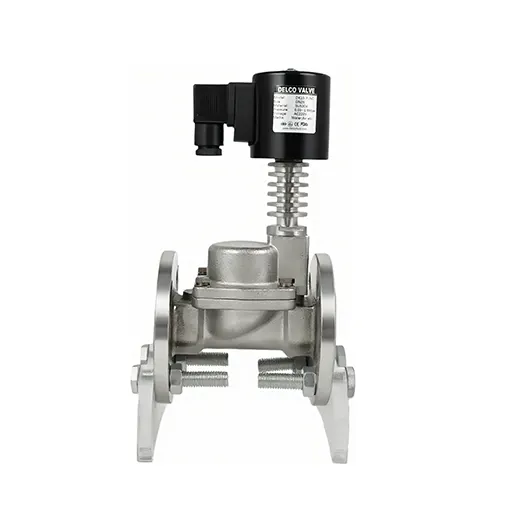

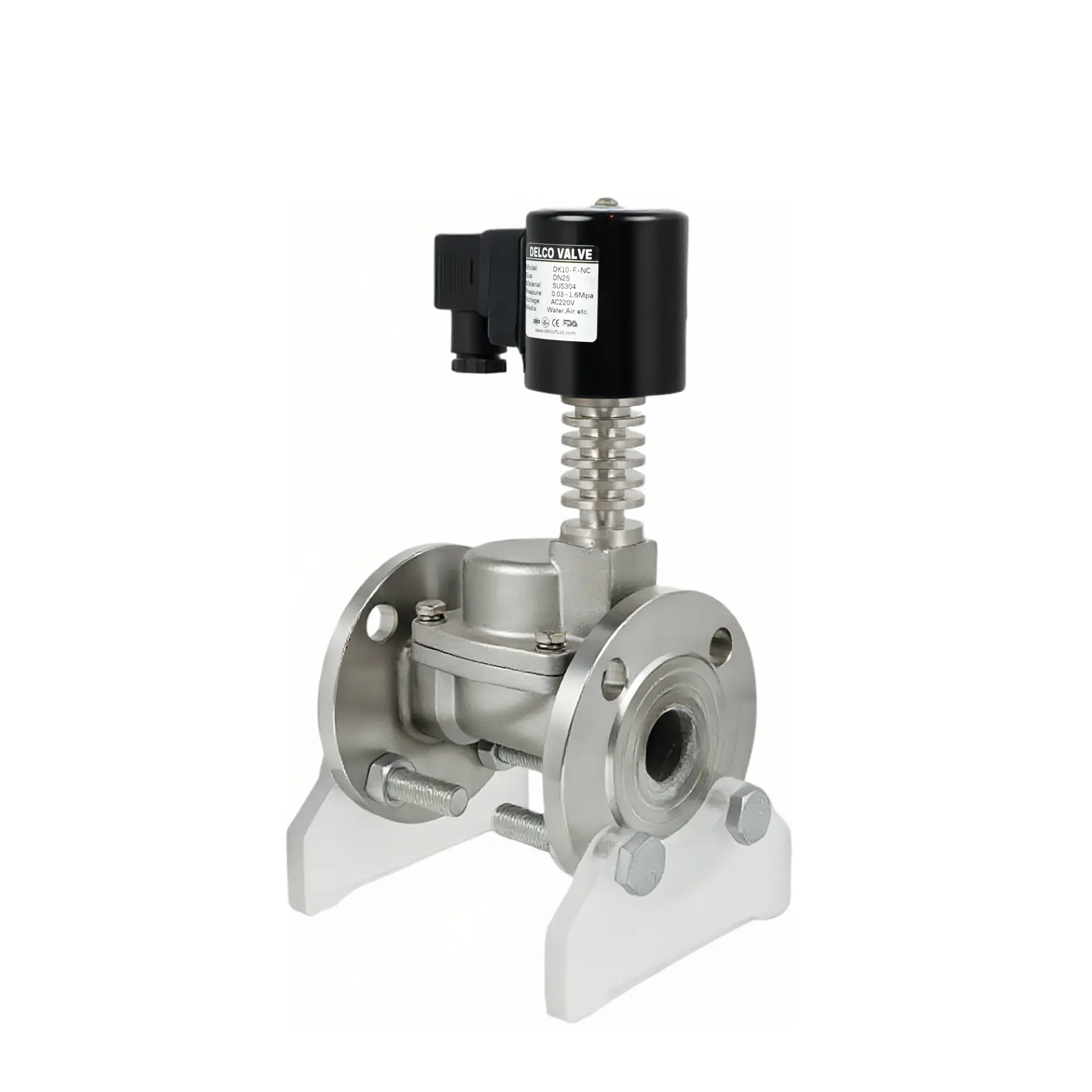

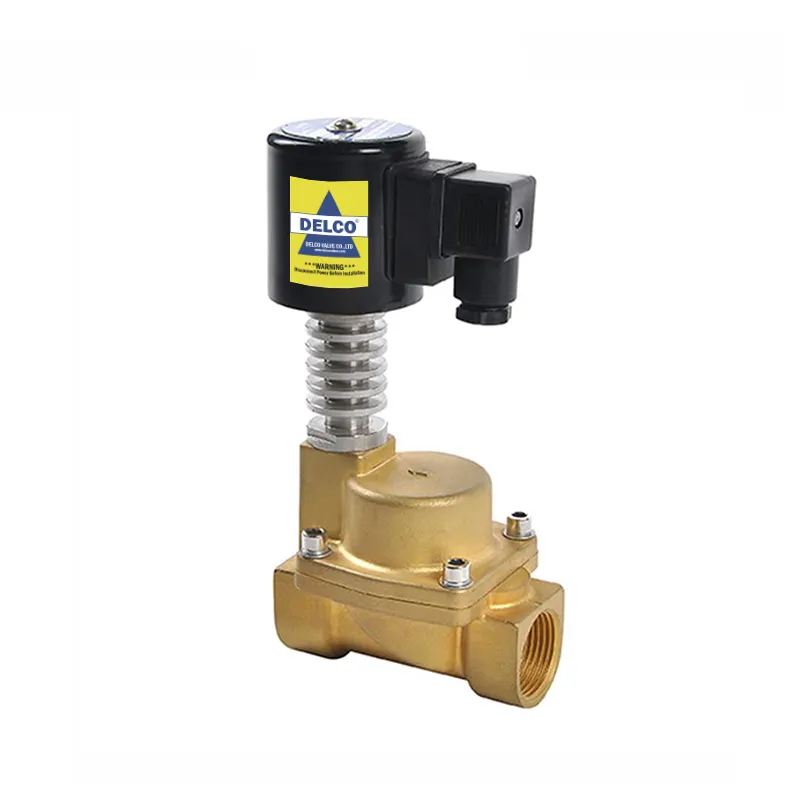

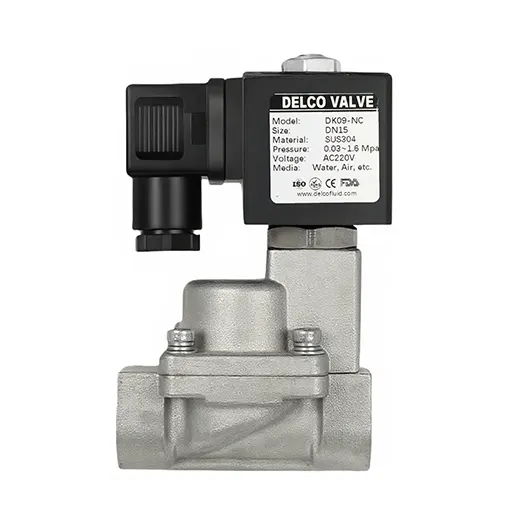

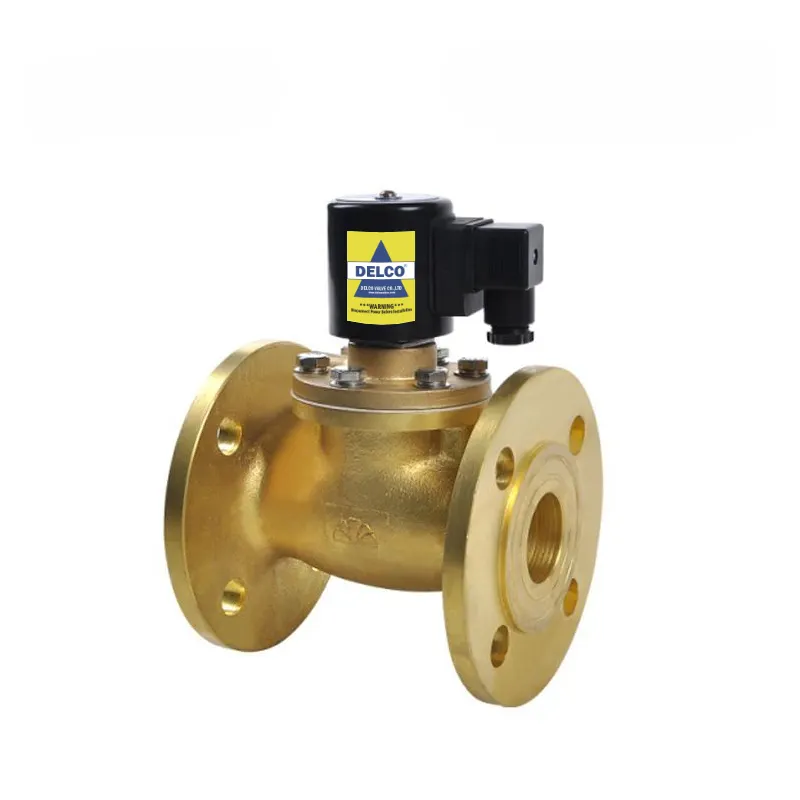

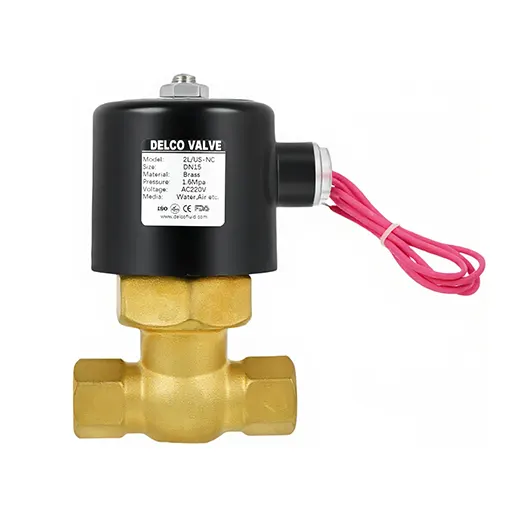

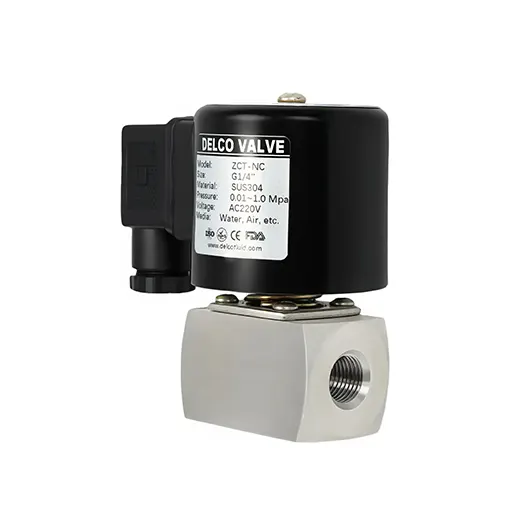

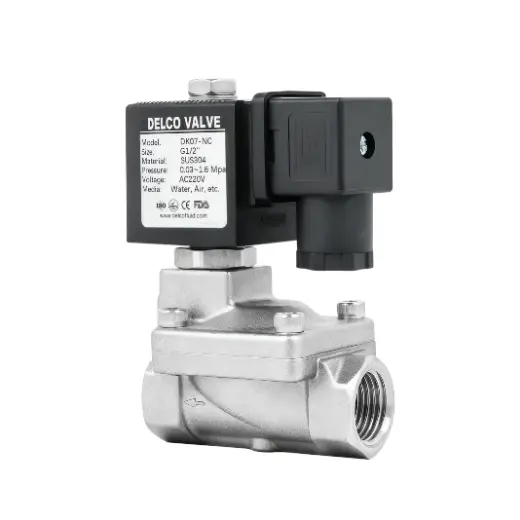

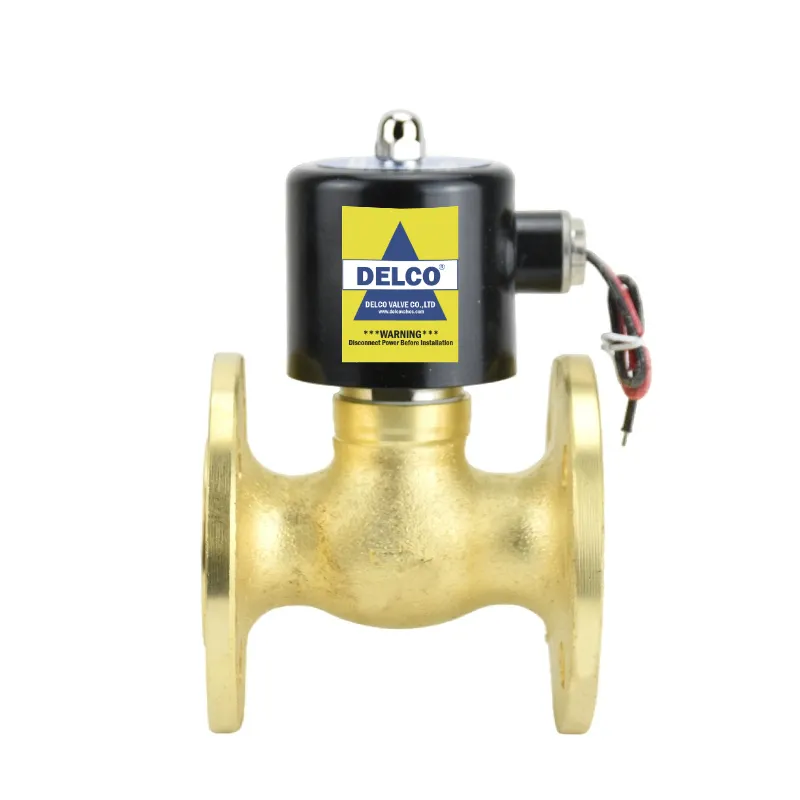

The pilot piston lifts completely out of the main flow path, providing full-bore unrestricted flow coefficients up to 10x higher than direct-acting valves of equivalent size.

By harnessing the fluid’s natural differential pressure to lift the piston, a compact 8W to 14W solenoid coil effortlessly controls massive line forces in large-diameter pipelines.

Features a precision stainless steel mesh filter and self-cleaning dynamic bleed pin that scours the pilot channel with every stroke, preventing scale and particulate clogging.

Solid metallic piston construction eliminates the tearing and flex-fatigue failures inherent to rubber diaphragms, effortlessly handling operating pressures up to 2.5 MPa (25 bar).

Dynamic PTFE/carbon-filled piston rings with internal stainless steel expanders automatically compensate for mechanical wear, delivering over 500,000 smooth, low-friction cycles.

A hydrodynamically contoured closing profile cushions the piston’s descent, mitigating severe pipeline pressure surges and water hammer during rapid shutoff.

Q1: How does a pilot piston solenoid valve utilize line differential pressure to open?

In the closed state, media pressure is equalized above and below the piston via a bleed orifice, with spring tension holding the piston shut. When energized, the solenoid lifts a small pilot needle, venting the chamber above the piston to the downstream side. Because the pilot orifice is larger than the bleed hole, pressure above the piston drops instantly. The higher inlet pressure underneath pushes the piston upward, opening the main valve wide.

Q2: What happens if a pilot piston valve is installed in a system with zero pressure differential?

If the inlet and outlet pressures are identical (ΔP = 0), or if line pressure is below 0.05 MPa (0.5 bar), there is insufficient hydraulic energy to lift the piston. The solenoid coil will energize and open the pilot hole, but the main piston will remain seated and no fluid will flow. For zero-pressure lines (gravity tanks or vacuum), a direct-acting or semi-direct acting valve must be selected.

Q3: What is the maintenance advantage of a piston design over a rubber diaphragm valve?

Rubber diaphragms undergo continuous mechanical bending and stretching with every stroke, eventually suffering tear fatigue and blowout under pressure surges. Metallic pistons do not flex; they slide smoothly within a precision cylinder bore. The PTFE/carbon piston rings have exceptional wear resistance and tolerate higher temperatures and pressures without degradation, extending service life by 3x–5x.

Q4: How does Delco protect the tiny pilot bleed orifice from scale and particulate clogging?

Clogging of the pilot bleed hole is the #1 cause of failure in pilot-operated valves. Delco equips all pilot piston valves with an integrated 100-mesh stainless steel filter screen covering the bleed entrance, and utilizes a dynamic self-cleaning stainless needle pin that sweeps through the bleed hole during every piston travel cycle, continuously clearing particulate deposits.
