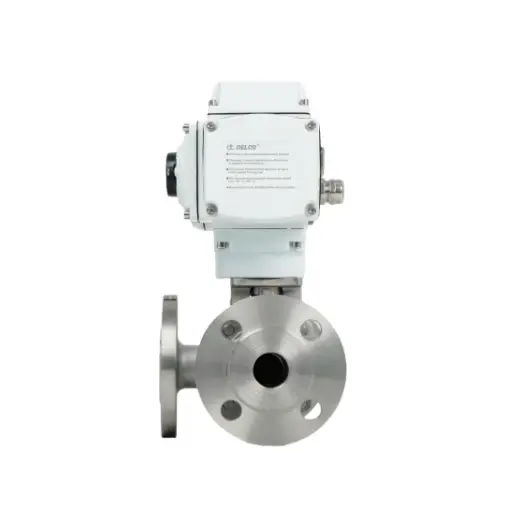

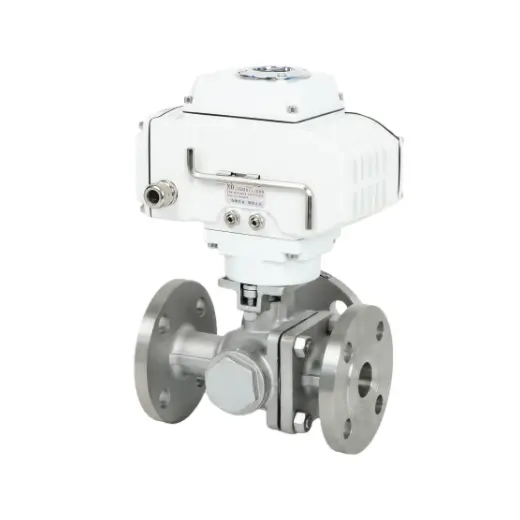

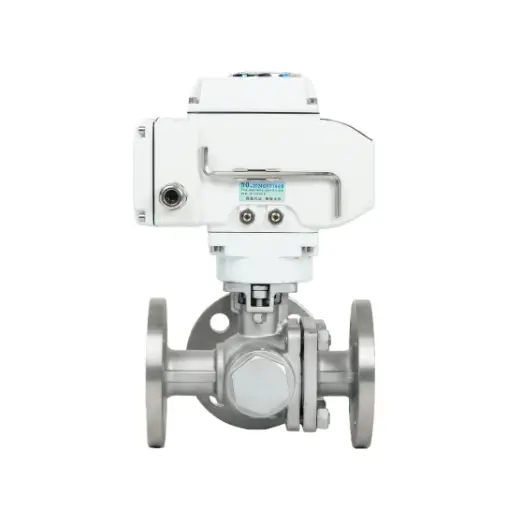

DK55-TF Series Electric 3-Way Flanged Ball Valve for Fluid Diversion and Merging
The DELCO DK55-TF Series is an Electric 3-Way Flanged Ball Valve designed for automatic fluid control. Utilizing robust Stainless Steel or WCB materials and a choice of L-Pattern or T-Pattern bore configurations, this valve is essential for changing flow direction, diverting, or merging media in three interconnected pipelines. It offers reliable, flexible control for applications up to 1.6 MPa.
Features
L/T-Pattern Versatility and Flanged Industrial Integration
✅ T-Pattern and L-Pattern Flow Versatility: The valve features a specialized ball core design offering both T-Pattern and L-Pattern configurations. This allows for complex flow management, including the ability to switch two perpendicular channels, close any one channel, or merge/divert fluids with high flexibility.
✅ Electric Automation and Remote Control: Paired with an electric actuator, the valve enables fast, precise, and automated 90℃ or 180℃ rotation for reliable flow switching. This allows for easy integration into Distributed Control Systems (DCS) and remote operation, enhancing overall system efficiency.
✅ Flanged Connection and High Pressure Rating: Equipped with standard Flanged Connections, the valve ensures secure, high-integrity installation in main process lines. It is constructed to meet a Nominal Pressure rating of at least PN16 (1.6 MPa), making it suitable for medium-pressure industrial systems.
✅ Durable Stainless Steel Construction: The main components are available in high-grade materials, including Stainless Steel (304/316 equivalent) and WCB. This ensures exceptional corrosion resistance and mechanical strength, suitable for various industrial liquids, gases, and mildly aggressive media.
✅ Zero Leakage and Reliable Sealing: The valve utilizes high-performance sealing materials like PTFE (Teflon) and Graphite Metal Composite Pads. This combination ensures a tight, bi-directional shutoff and extends the service life in demanding environments.
Parameters
Industry Applications
-
Water Treatment
Chemical dosing (chlorine, pH adjusters), filtration systems -
Chemical Processing
Acid/alkali transfer, solvent blending lines -
HVAC Systems
Chilled water control, heat recovery units -
Aquaculture
Seawater flow diversion, ozone injection -
Plating Plants
Electrolyte management, waste neutralization
