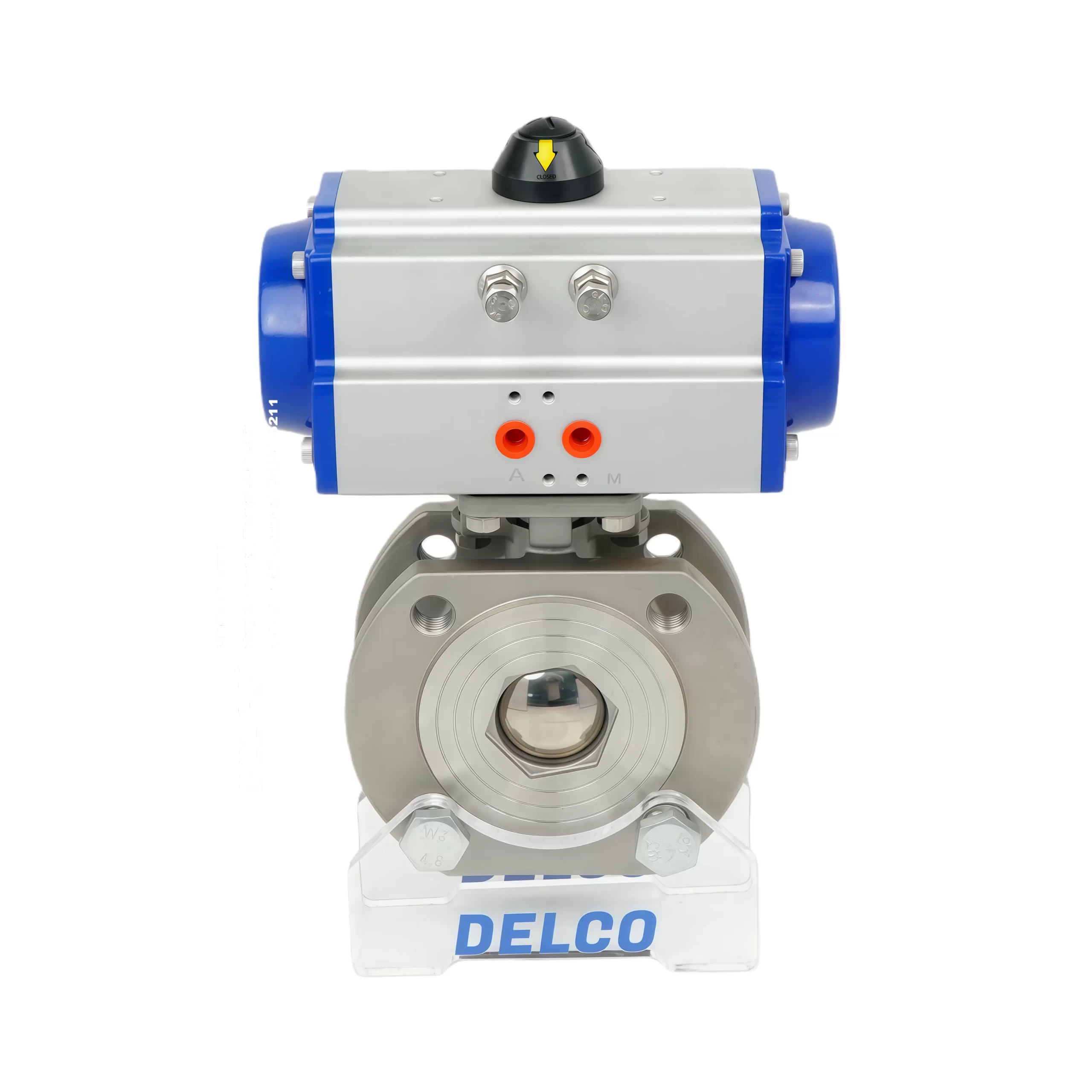

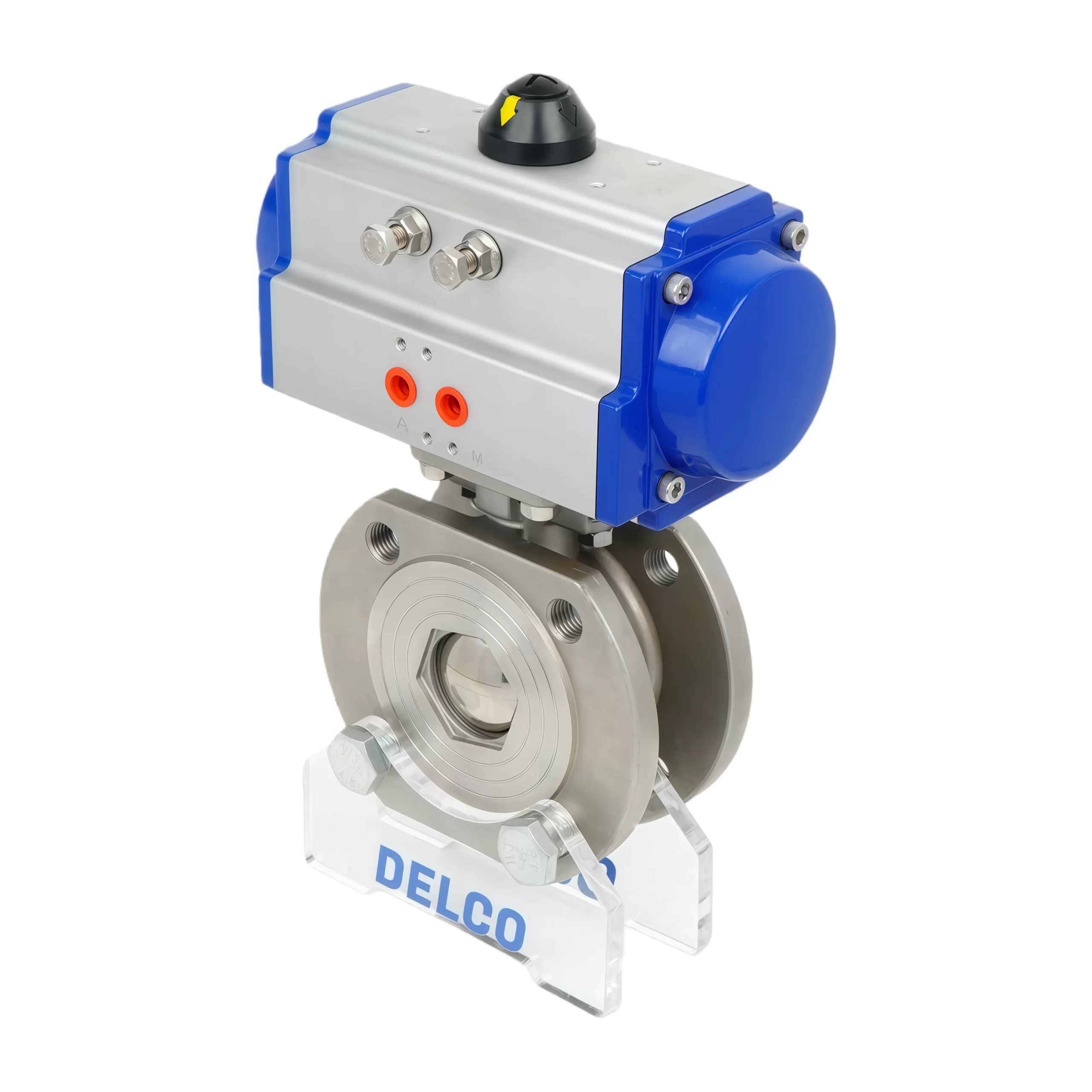

DN66-BV Pneumatic Thin-Type Wafer Ball Valve - Compact & Fast Isolation
The DN66-BV Pneumatic Thin-Type Ball Valve is specifically engineered for automated applications where installation space and weight minimization are critical. Its unique Thin-Type (wafer-style) structure provides a compact, low-profile fitment between pipeline flanges. This design minimizes the valve's face-to-face dimension without compromising the superior flow characteristics and tight isolation of a standard ball valve. Coupled with a pneumatic actuator, the DN66-BV delivers rapid, quarter-turn on/off control, offering an ideal solution for fast, reliable shutoff in crowded industrial piping systems.
Features
A compact, lightweight pneumatic thin-type ball valve designed for fast, automated, and reliable quarter-turn shutoff in space-constrained industrial pipelines.
✅Ultra-Compact Thin-Type Design: Features a reduced face-to-face dimension (wafer style), drastically minimizing the space required for installation and lowering the overall weight of the valve assembly.
✅Rapid Pneumatic Automation: The pneumatic actuator provides immediate, high-speed, quarter-turn response, which is essential for fast process cycling, batch control, and quick system isolation.
✅Reliable Ball Valve Isolation: Provides the benefit of a ball valve: near-zero pressure drop when fully open, and bubble-tight, reliable shutoff when closed.
✅Easy Installation and Integration: The compact wafer-style body simplifies installation between standard pipeline flanges, making it easier to integrate into existing complex or crowded piping networks.
✅Versatile Material Options: Available in materials (typically Cast Iron or Stainless Steel) suitable for a wide range of media and pressures, ensuring durability despite the compact design.
Industry Applications
-
Water Treatment
Chemical dosing (chlorine, pH adjusters), filtration systems -
Chemical Processing
Acid/alkali transfer, solvent blending lines -
HVAC Systems
Chilled water control, heat recovery units -
Aquaculture
Seawater flow diversion, ozone injection -
Plating Plants
Electrolyte management, waste neutralization
