Electric Fluorine Lined Flanged Butterfly Valve for Aggressive Chemical Services
The DELCO Electric Fluorine Lined Flanged Butterfly Valve is a high-performance chemical valve engineered for reliability in severely corrosive environments. It combines a durable metal body (Cast Iron/WCB/SS) fully protected by an industrial-grade PTFE (Teflon) lining with a sophisticated electric actuator. Designed with Flanged Connections for structural superiority in high-pressure and large-diameter pipelines (especially recommended for sizes exceeding DN600), this valve provides reliable automated control (ON-OFF or Modulating) over virtually all concentrations of acid, alkali, and solvents up to 1.6MPa.
Features
Flanged Integrity and Universal Chemical Inertness
✅ Flanged Connection Superiority: Unlike wafer designs, the Flanged connection offers superior mechanical stability and higher pressure resistance, making this valve the recommended choice for large diameters (e.g., above DN600) and demanding, high-integrity pipeline systems.
✅ Universal Chemical Resistance: The valve body and all overcurrent components are lined with thick PTFE (Polytetrafluoroethylene) using advanced lining technology. This ensures exceptional chemical inertness, making the valve suitable for controlling any concentration of acid, alkali, salt, oxidant, or organic solvent.
✅ Automated Control Options: Equipped with an integrated electric actuator, the valve supports dual functionality:
- Switch Control Type: Simple ON-OFF operation via electrical signal.
- Intelligent Adjustment Type: Precise proportional flow control using 4-20 mA or analog signals.
✅ Robust Metal Base Construction: The inner PTFE lining is supported by a strong metal base (Cast Iron, WCB, or Stainless Steel CF8/CF8M), providing the necessary mechanical strength and structural performance to safely handle system pressures up to 1.6MPa (PN16).
✅ Effective Sealing and Versatile Replacement: The design offers a reliable sealing mechanism with its fluoropolymer-lined disc. This valve can effectively replace traditional, more costly types of cut-off and regulating valves (like gate and globe valves) in corrosive media applications.

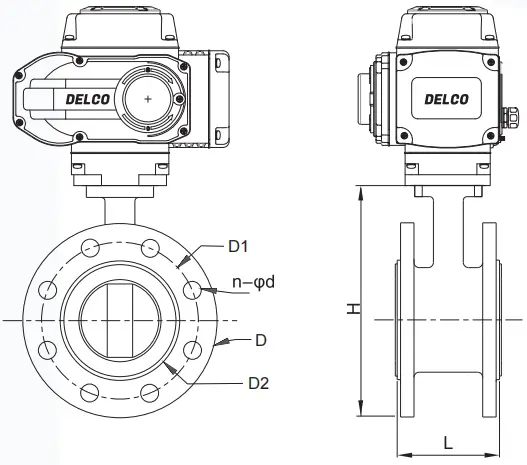

Parameters
Industry Applications
-
Water Treatment
Chemical dosing (chlorine, pH adjusters), filtration systems -
Chemical Processing
Acid/alkali transfer, solvent blending lines -
HVAC Systems
Chilled water control, heat recovery units -
Aquaculture
Seawater flow diversion, ozone injection -
Plating Plants
Electrolyte management, waste neutralization
