Industrial Electric Butterfly Valves

Electric Wafer Butterfly Valve

Designed for space-saving installation, this compact valve is sandwiched directly between pipe flanges. It provides a lightweight, cost-effective automation solution ideal for general water treatment and HVAC systems.

Electric Lugged Butterfly Valve

Featuring threaded metallic inserts for secure, bolt-through mounting, this valve allows for downstream pipeline maintenance without draining the entire system. It is the perfect automated choice for end-of-line service.

Electric Flanged Butterfly Valve

Built with integral flanged ends to withstand heavy-duty, high-pressure environments. This robust motorized valve ensures maximum stability and secure connections in large-diameter industrial pipelines.

Electric Sanitary Butterfly Valve

Manufactured from highly polished stainless steel with FDA-approved seals to meet strict hygiene standards. It delivers quick, sterile automated flow control for the food, beverage, and pharmaceutical industries.

Electric Plastic Butterfly Valve

A lightweight, corrosion-resistant automated valve crafted from durable UPVC, CPVC, or PP. It offers a highly cost-effective, non-scaling solution for agricultural irrigation, desalination, and basic chemical handling.

Electric Fluorine-lined Butterfly Valve

Fully lined with premium PTFE or PFA to provide absolute resistance against severe corrosive media. It is engineered for safe and reliable automated isolation in demanding chemical and petrochemical processing plants.

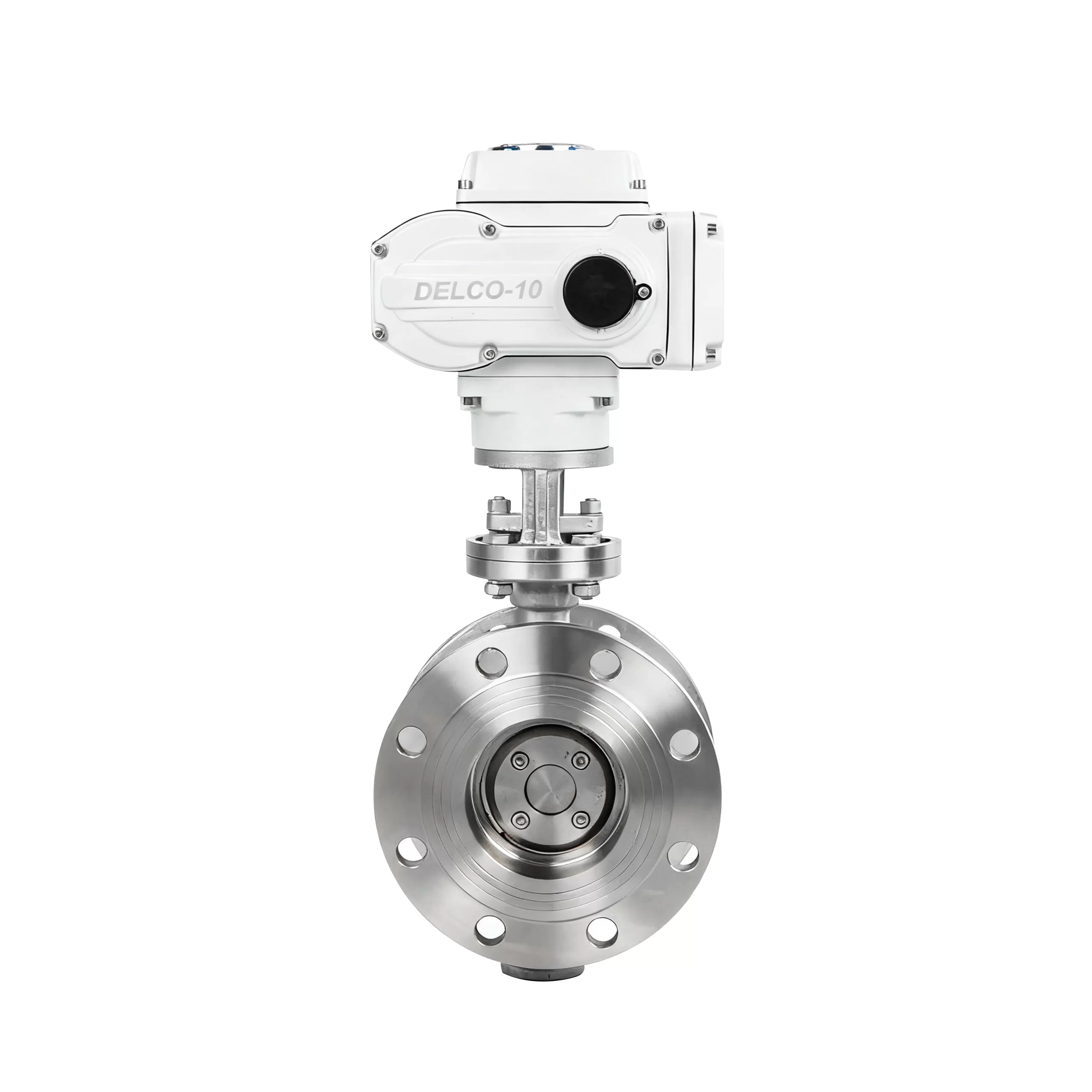

Electric Hard-Seated Butterfly Valve

Equipped with a rugged metal-to-metal seal designed to conquer extreme temperatures, high pressures, and abrasive fluids. This is the ultimate automated valve for steam lines, power generation, and metallurgy.

Electric Groove Butterfly Valve

Designed with grooved ends for rapid, weld-free installation and easy maintenance. It delivers highly reliable motorized control specifically tailored for fire protection systems, commercial HVAC, and municipal water networks.

Need Custom Actuation?

Beyond our standard series, we provide custom actuator sizing, mounting bracket manufacturing, and specialized control signals (Modbus, Profibus) tailored to your exact DCS requirements.

Download Full Catalog

Get comprehensive technical data sheets, CAD drawings, wiring diagrams, and torque charts for the entire electric butterfly valve family.

Request Documentation →

Valve Structure & Design

Specify the structural design (Concentric, Double Eccentric, or Triple Offset) based on your application's flow characteristics, friction tolerance, and operating cycle frequency.

Connection Type & Size

Define nominal pipe size (typically DN40-DN1200 / 1.5"-48") and standard body connections: Wafer, Lugged, Flange (ANSI/DIN/JIS), or Groove.

Body, Disc & Seat Materials

Select body/disc materials (Ductile Iron, WCB, SS316, UPVC) and seat liners (EPDM, NBR, PTFE, or Metal-to-Metal) strictly compatible with your process medium.

Operating Temperature

Provide working temperature ranges (-20°C to +425°C+) to determine if standard elastomer seats, high-temp fluorine-lined, or metal hard-seated configurations are required.

Pipeline Working Pressure

Specify system pressure ratings (PN10-PN64 / Class 150-300) to verify valve body rating and calculate the exact breakaway torque for accurate actuator sizing.

Actuator Operating Voltage

Select power supply specifications for your site control panel: DC24V, AC24V, AC110V, AC220V, or heavy-duty 3-Phase AC380V.

Control Method & Signal

Choose operational modes: On/Off type, Intelligent Modulating (4-20mA/0-10V control signal), fail-safe backup, or digital fieldbus integration (Modbus/DCS).

Final Review & Quote

Submit your configured parameters to our engineering team for a rapid technical review, CAD drawings, torque calculations, and customized pricing.

Submit Specs & Get Quote →

Advanced Motorized Control

Driven by heavy-duty intelligent actuators, our quarter-turn butterfly series ensures rapid actuation and precise flow modulation. These units are built for immediate compatibility with modern industrial automation setups, including PLC and advanced fieldbus architectures.

Large-Diameter Sealing Integrity

Utilizing streamlined discs and resilient seating materials, these valves minimize pressure drop while providing bubble-tight isolation. They are specifically optimized to safely manage massive fluid volumes in large-scale municipal, HVAC, and chemical networks.

Optimized Power Efficiency

Relying on motor-driven gearboxes that mechanically lock in place upon reaching the desired angle, our valves consume zero standby energy. This self-locking mechanism not only slashes electricity costs but also prevents disc fluttering under high fluid velocities.

Comprehensive Pipeline Adaptability

We manufacture fluid control solutions for any challenge. Whether your project requires plastic or fluorine-lined bodies for corrosives, hard-seated trims for extreme heat, or sanitary finishes for hygiene—securely mounted via wafer, lugged, flange, or groove formats—DELCO has you covered.

Rigorous Factory Validation

Quality is non-negotiable. As a direct manufacturer, we subject every completed valve-actuator package to strict hydrostatic pressure tests, pneumatic seal checks, and electronic stroke calibrations to certify zero defects prior to global shipment.

Expert Engineering & Sizing

Selecting the correct actuator torque for a butterfly valve is critical. Our dedicated technical team supports distributors and contractors with precise breakaway torque calculations, complete 3D models, and wiring schematics to guarantee flawless field installation.
