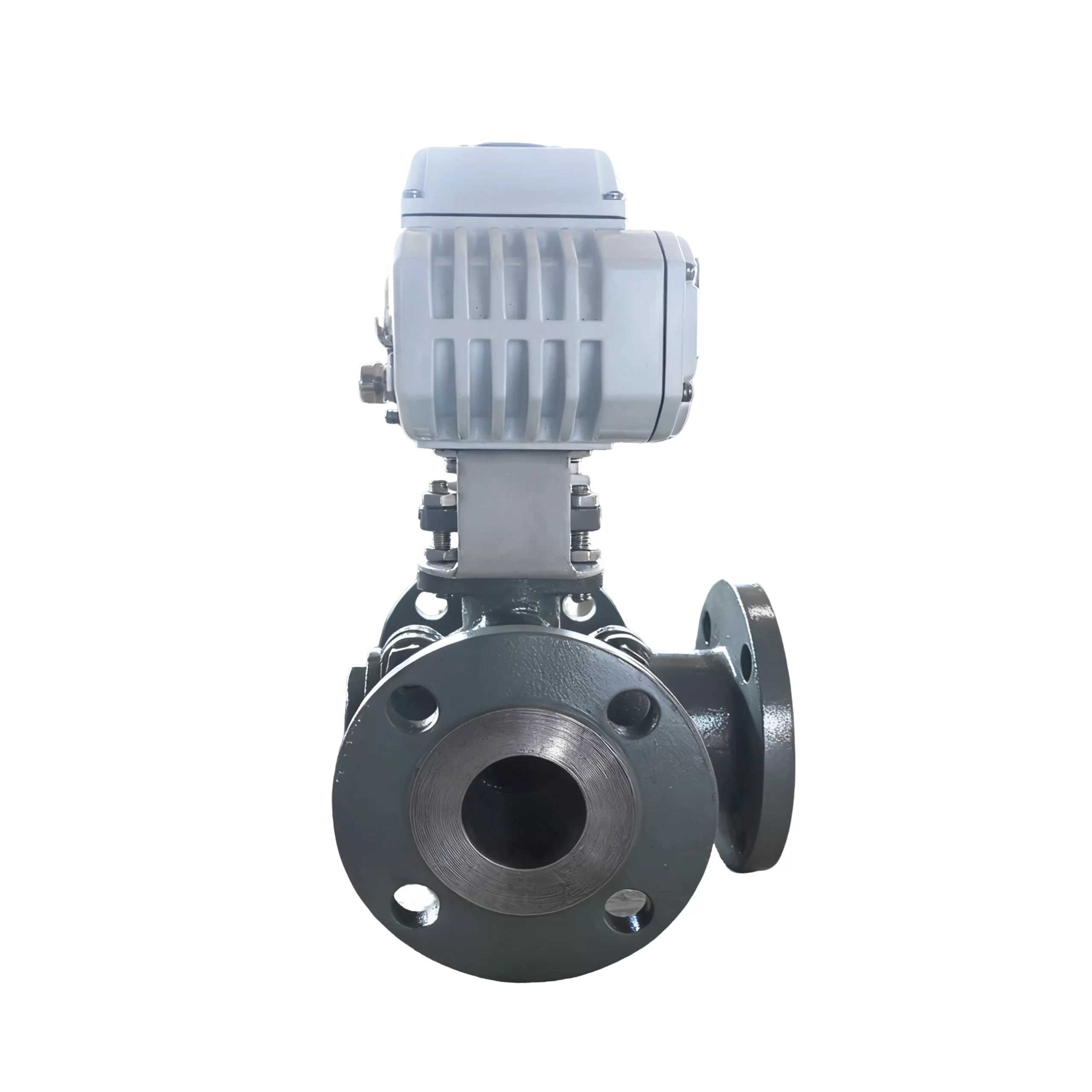

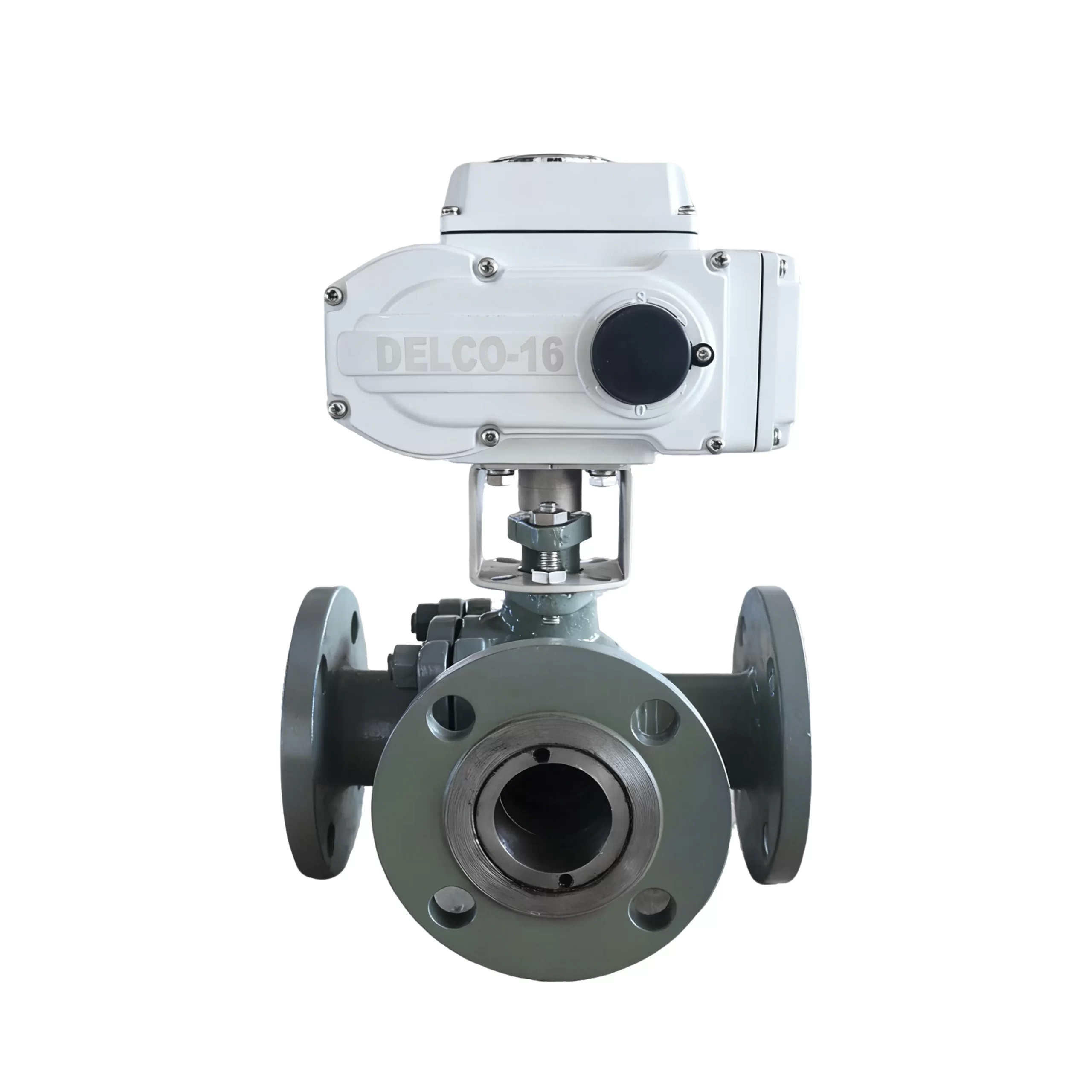

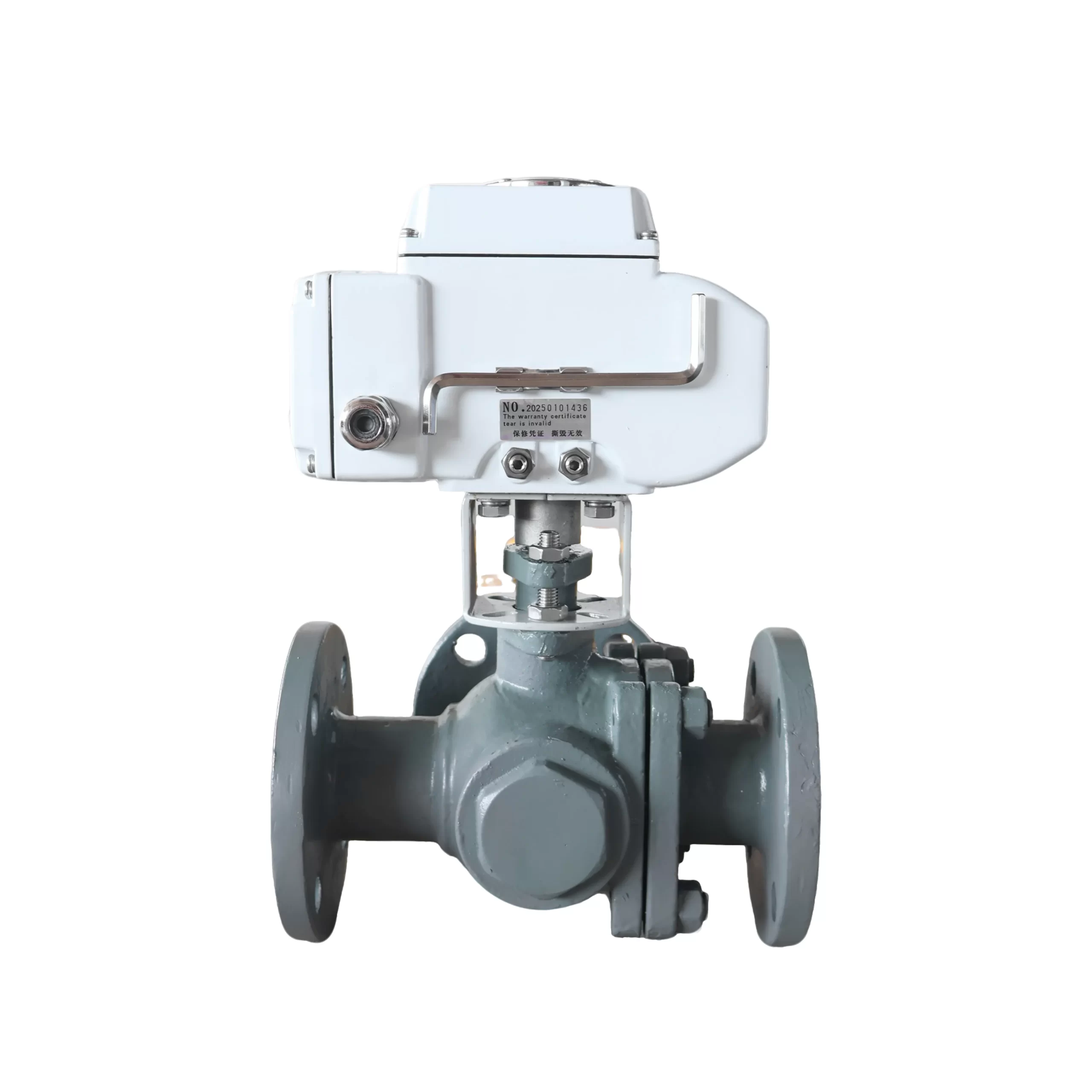

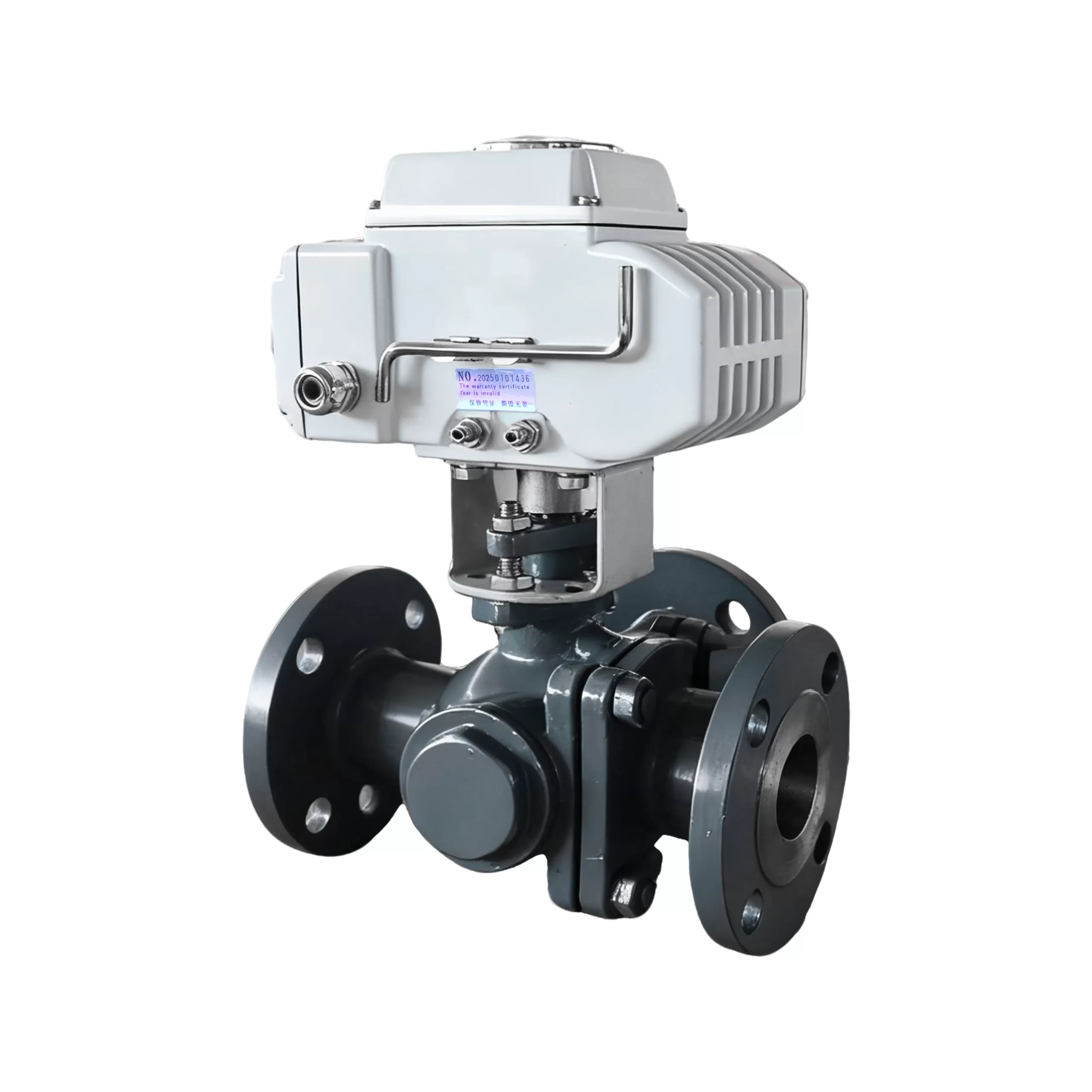

DK55-TFC Electric Actuated 3-Way Flanged Ball Valve – WCB Body, Diverting & Mixing (L/T Port)

The DELCO DK55-TFC is a heavy-duty, electric-actuated 3-way flanged ball valve engineered for automated flow diversion, mixing, and bypass in severe industrial piping systems. Built with a rugged ASTM A216 WCB cast steel body and an ISO 5211 direct-mount high-torque actuator, it delivers reliable remote switching via L-port (diverting) or T-port (multi-flow/mixing) patterns. Available in ANSI Class 150 / DIN PN16 configurations with ON/OFF or 4-20mA modulating control options.

Size Range: DN15-DN350

Material: WCB, Stainless Steel etc.

Connection Standard: GB / ANSI / JIS /DIN

Get Free Quote

Key Features & Engineering Highlights

• Flexible L-Port & T-Port Flow Configurations:

Engineered for multi-directional media routing. Choose L-Port for 90-degree flow diversion/switching, or T-Port for mixing two streams or splitting a single inlet into dual outlets, simplifying complex piping layouts.

• Rugged ASTM A216 WCB Cast Steel Construction:

Offers superior tensile strength, impact resistance, and mechanical durability compared to ductile/cast iron. Designed to withstand high operating pressures and thermal cycling in demanding industrial utilities.

• High-Performance Electric Automation (ISO 5211 Direct Mount):

Equipped with a compact, weather-proof (IP67 / NEMA 4X) electric actuator. Supports multi-voltage inputs (AC 110V/220V/380V, DC 24V) and multiple control modes: standard ON/OFF, passive contact feedback, or 4-20mA / 0-10V intelligent proportional modulating. Includes manual override handwheel/wrench for emergency operation.

• Standardized Flanged Connection & Leak-Free Sealing:

Precision-machined flange ends comply with ANSI B16.5 (Class 150/300), DIN EN 1092-1 (PN16/25/40), or JIS 10K/20K standards. Paired with reinforced PTFE (RPTFE) seats and anti-blowout stem design, ensuring ANSI FCI 70-2 Class VI bubble-tight shutoff and extended cycle life.

• Factory Tested & Certified Reliability:

Every valve undergoes 100% shell hydrostatic and seat air testing in accordance with API 598 / EN 12266 before dispatch. Full material test reports (MTR/EN 10204 3.1) and technical documentation provided upon request.


Technical Data

Valve Data Actuator Sizing

Item	Description
ON/OFF Type	Feedback: the active contact signal, passive contact signal, resistant, 4–20mA
Regulation Type	Input & Output signal: DC 4–20mA, DC 0–10V, DC 1–5V
Intelligent Type	Input & Output signal: DC 4–20mA, DC 0–10V, DC 1–5V
Field Operation	The field, remote control switch regulation and MODBUS, PROFIBUS field bus
Voltage optional	AC 110–240V; 380V 50/60Hz; DC12V; DC24V; Special voltage can be customized
Protection Class	IP65

Feature	Spec / Benefit
Housing	Hard aluminum alloy, hard anodized + polyester powder coating (corrosion resistant)
Protection	IP65 (higher available on request)
Motor	Fully enclosed cage motor; Insulation class F (overheat protection)
Manual Override	Manual operation available during power-off
Limit Switch	Mechanical + electronic limit; adjustable stop screws; cam-controlled electronic limit
Self-locking	Worm-gear self-lock; prevents reverse rotation
Noise	Max. 50 dB
Mounting Interface	ISO 5211 / DIN 3337
Installation	Vertical or horizontal mounting
Wiring	Single-phase or three-phase wiring supported

Performance\Item		5	10	16	30	60	125	250	400
Angle of Rotation		0-90°
AC220V AV Voltage	Torque Output	50Nm	100Nm	160Nm	300Nm	600Nm	1250Nm	2500Nm	4000Nm
	90°Cycle Time	10S/20S/60S	15S/30S/60S			30S/60S	90S
	Working Current	0.23A	0.35A	0.40A	0.45A	0.60A	1.03A	1.85A	2.70A
	Drive Motor	50W	75W	80W	100W	130W	210W	285W	360W
	Voltage Options	AC220V / AC110V / AC24V
	Control Circuit	B: ON/OFFType with Passive Contact Signal Feedback
DC DC Voltage	Torque Output	60Nm	100Nm	170Nm	330Nm	680Nm	1300Nm	2500Nm
	90°Cycle Time	8S	11S		9S	35S	32S
	Starting Current	0.74A	1.40A	1.40A	3.80A	7.0A	3.8A	4.3A
	Working Current	0.38A	0.38A	0.40A	1.03A	0.70A	1.2A	1.4A
	Drive Motor	9.5W	9.0W	9.6W	30W	33W	30W	33W
	Voltage Options	DC12V / DC24V / DC110V / DC220V
	Control Circuit	F: DC24V/ DC12V Direct ON/OFF Type
AC380V	Torque Output	70Nm	100Nm	200Nm	300Nm	600Nm	1300Nm	2500Nm
	90° Cycle Time	20S	27S	27S	25S	26S	50S	50S
	Starting Current	0.20A	0.28A	0.30A	0.55A	0.45A	0.60A	0.77A
	Working Current	0.16A	0.25A	0.27A	0.53A	0.43A	0.65A	0.75A
	Drive Motor	51W	70W	77W	117W	220W	90W	103W
	Voltage Options	AC380V
	Control Circuit	G: AC380V Three-Phase Power Supply with Passive Signal Feedback (Default) H: AC380V Three-Phase Power Supply with Resistance Potentiometer Signal Feedback (Optional)
Protection Class		IP65
Ambient Temp		-30°C~+60°C
Installation Angle		Any
Electrical Connection		G1/2 Water-proof Cable Connectors, Electric Power Wire, Signal Wire

Note: Can't connect one actuator parallel with other ones, in other words,can't use the same controller contact points tocontrol two and above actuators, otherwise it will cause out-of-control, motor overheating, product damage, andshorter service life.

Industry Applications

Browse our case studies or talk directly with our engineers to discuss your application.

Why Partner with DELCO Valves

Driven by modern CNC precision, 100% pressure testing, and comprehensive international compliance, DELCO delivers high-performance automated flow control solutions engineered for demanding global infrastructure.

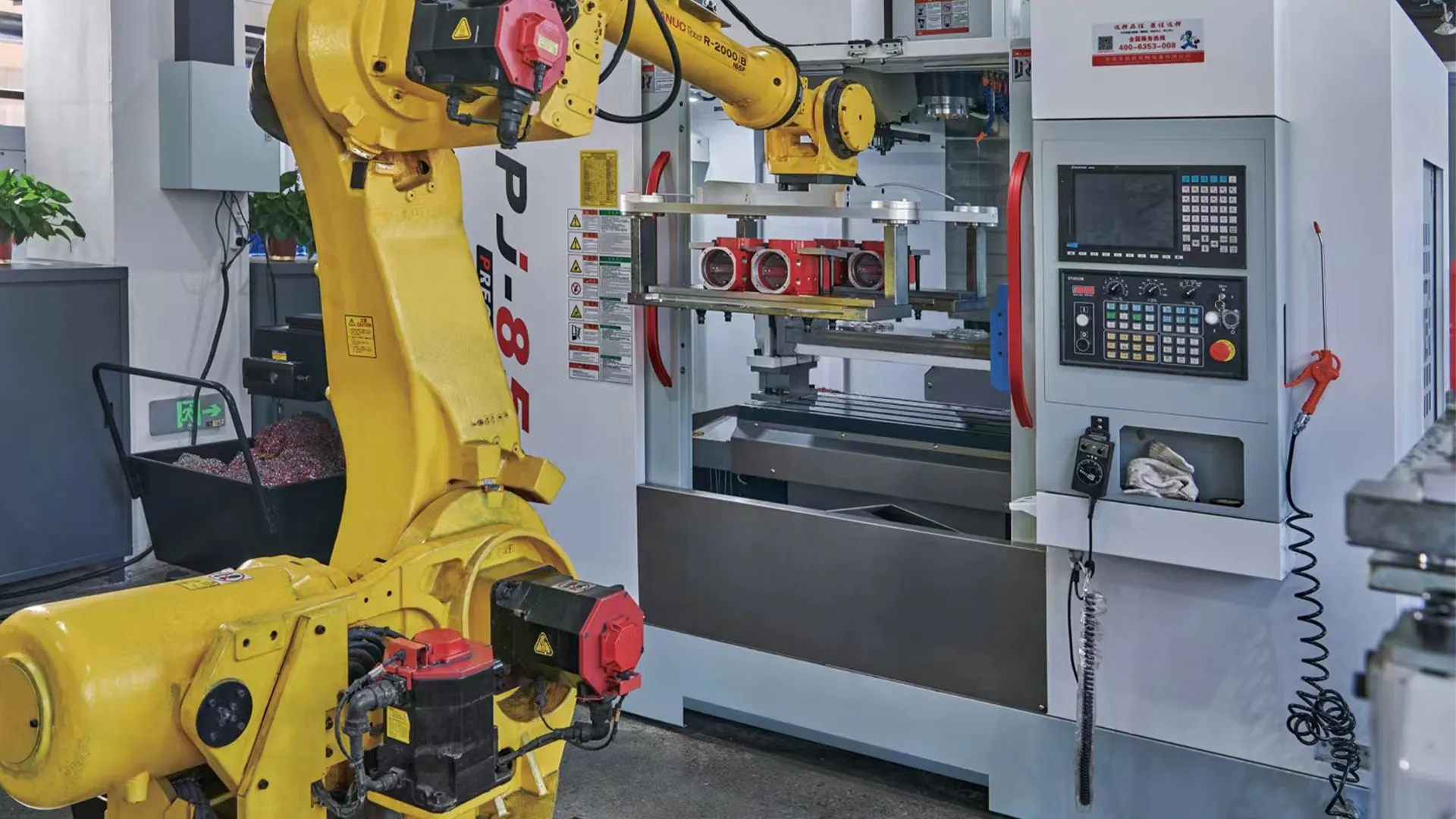

Precision Engineering & Scale

State-of-the-art CNC machining centers and automated assembly lines ensure strict dimensional accuracy, repeatable quality, and scalable production for large-scale industrial projects.

Full International Compliance

Fully certified to ISO 9001, CE, PED, ATEX, SIL, RoHS, FDA, and API 607 Fire Safe, ensuring hassle-free customs clearance and full engineering approval across oil & gas, chemical, food, and pharma sectors.

100% Quality & Factory Test Reports

Every valve undergoes 100% hydrostatic and pneumatic seat testing before dispatch. We provide complete mill test reports (MTRs), factory inspection reports, and technical documentation per project requirements.

Engineering Support & Global Delivery

Backed by technical valve specialists, we offer valve sizing and selection assistance, customized OEM/ODM designs, and dependable export shipping to keep project timelines on track.

Get Free Quote

Send Your Inquiry

Not sure which valve fits your project? Our engineers provide fast selection support and OEM customization.

For a faster and more precise quotation, kindly include details such as:

The model or features you are looking for
Your estimated purchase quantity
Any OEM / branding requirements
Target market or application

Actuator Material:	Aluminum Alloy	Nominal Port Size:	DN15-DN1000
Applicable Medium:	Fluid, Steam, Air, Oil etc.	Actuator Rotation:	90º
Control Signal:	1-5VDC, 0-10VDC, 4-20mA	Torque Range:	50Nm~2000Nm
Return Difference	<0.3%	End Connection Type:	Flange(GB/ANSI/DIN/JIS/GOST)
Ambient Temp:	(-30℃~+60℃)	Power Supply Voltage:	DC12V,24V; AC 24V,110V,220V,380V/50Hz
Tolerance:	±0.5%	Installation Angle:	No Required
Manual Override:	Yes	With Explosion-proof:	Yes or Not (Optional)
Open/Close Type:	20s~75s	Protection Class:	IP65 / IP67 / IP68 (Optional)
Certification Approval；	BV, ATEX, SIL, ISO9001, ROHS, CE, FDA etc.	OEM Support:	Yes
