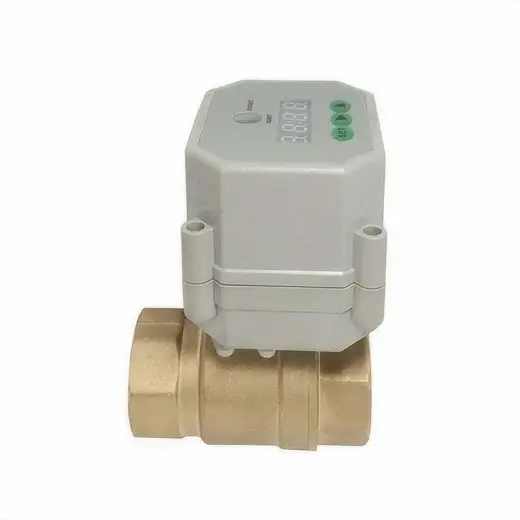

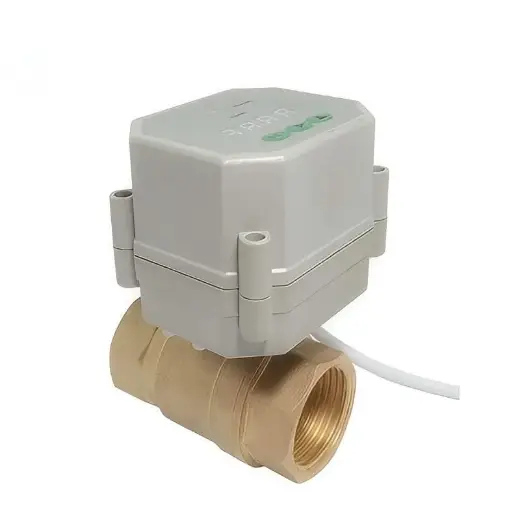

DK60-B2 Miniature Electric Brass Ball Valve with Timer Function for Automatic Drain System
DELCO's DK60-B2 is a compact brass electric ball valve featuring an integrated timer function, allowing precise control of valve opening time from seconds to nearly 100 hours. Its high-precision plastic actuator, 100,000-cycle lifespan, and IP67 protection make it ideal for intelligent, scheduled fluid management systems.
Size Range: DN15-DN50
Material: Brass, Stainless Steel, Plastic etc.
Connection Standard: G / NPT
Features
Precision Time Control and High-Durability Miniature Design

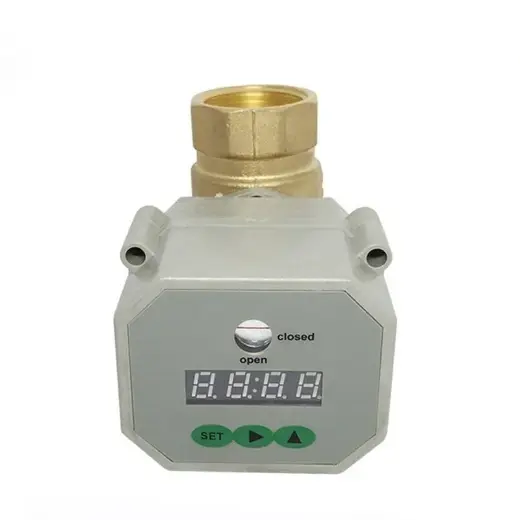

✅ Integrated Time Control Functionality: Features a unique built-in timer (0H:0M:0S to 99H:59M:59S) that automatically controls the duration the valve remains open, providing precision scheduling for water-saving and batch processing systems.
✅ High-Endurance Service Life: Engineered for long-term reliability, the valve is rated for a minimum of 100,000 opening/closing cycles, significantly exceeding typical operational demands in domestic or light industrial applications.
✅ Durable and Compact Brass Construction: The valve body is made of brass (nickel-plated optional) with FKM/PTFE sealing, capable of handling water and air up to 1.0MPa pressure in a liquid temperature range of 2℃-90℃.
✅ Secure and Waterproof Actuator: The actuator, made of engineering plastics, boasts an IP67 protection class, providing complete dust protection and resistance against temporary water immersion, ensuring stable operation in humid or outdoor environments.
✅ Wide Voltage Adaptability and Quick Action: Supports both low voltage (DC9-24V) and high voltage (AC/DC110-230V) options. The actuator provides a quick open/close time of ≤ 7seconds.

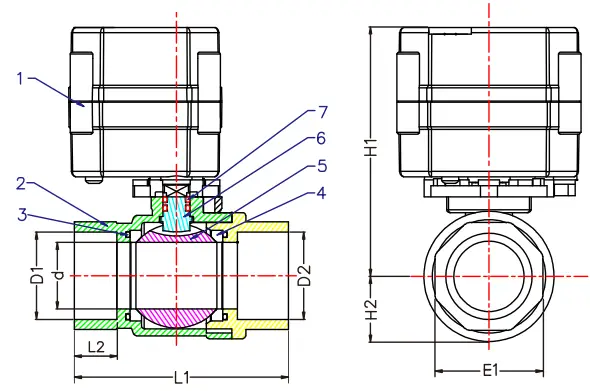

Parameters
Industry Applications
-
Water Treatment
Chemical dosing (chlorine, pH adjusters), filtration systems -
Chemical Processing
Acid/alkali transfer, solvent blending lines -
HVAC Systems
Chilled water control, heat recovery units -
Aquaculture
Seawater flow diversion, ozone injection -
Plating Plants
Electrolyte management, waste neutralization
