In municipal waterworks and wastewater infrastructure, valve failures rarely stem from extreme pressure. Instead, they fail from chronic corrosion, abrasive solids, stringy ragging, cavitation, and dynamic water hammer.

Every project enquiry we evaluate boils down to matching the correct valve design and metallurgy to the specific fluid dynamics of the plant: from raw water intakes and potable distribution networks to grit-laden sewage treatment loops and aggressive desalination reject lines.

Everything below reflects configurations we engineer, cast, coat, bench-test, and export as a specialized valve and actuator manufacturer with 20+ years of international manufacturing experience.

The Short Selection Summary

  • Potable Water & Distribution Lines: Resilient seated gate valves for drop-tight isolation with zero sediment pockets; double-eccentric butterfly valves for large-bore transmission headers; air release valves to eliminate vapor pockets.
  • Raw Sewage & Sludge Handling (WWTP / STP): Electric knife gate valves and pneumatic knife gate valves to shear through stringy rags and suspended solids; ball check valves to prevent pump reverse flow without clogging.
  • High-Chloride & Desalination (SWRO): High-pressure duplex stainless steel ball valves and rubber-lined or nickel aluminum bronze butterfly valves to resist severe crevice and pitting corrosion.
  • Chemical Dosing & Effluent Neutralization: PTFE/PFA lined butterfly valves, fluorine-lined ball valves, and corrosion-resistant solenoid valves.
  • Materials & Coatings: Heavy-duty Ductile Iron (GGG50 / ASTM A536) bodies with electrostatically applied Fusion Bonded Epoxy (FBE) coating (minimum 250–300 μm) compliant with international drinking water hygiene standards.
gate-valve-2
electric-flanged-ball-valve-1789521712487
Pneumatic-Lugged-Butterfly-Valve
High-performance-butterfly-valve

Four Water Environments, Four Sets of Engineering Rules

Water is not a single fluid from a valve engineer's perspective. It represents four completely different operating conditions:

Raw Water & Potable Mains：High flow, minimal head loss, FBE coating, zero-cavity drop-tight seal.

Sewage & Sludge (WWTP)：Fibrous rags, grit, biogenic H2S, non-clogging shearing trim.

Desalination (SWRO)：Extreme chlorides, 70-80 bar reject pressure, duplex alloys.

Chemical Dosing & Effluent：Strong acids/bases (PAC/PAM/Chlorine), lined inert seating.

1. Municipal Water Transmission & Potable Water Distribution

Drinking water supply requires massive flow capacity, minimal pumping head loss, guaranteed sanitary hygiene, and long service life under buried or chamber installations.

Recommended Configurations:

  • Sectional Mainline Isolation (DN50–DN300): Resilient seated gate valves (soft-seated gate valves with EPDM encapsulated ductile iron wedges). A straight-through, smooth bottom bore without a groove ensures suspended fine silts pass freely without lodging under the wedge.
  • Large-Diameter Transmission Headers (DN300–DN2000): Double-eccentric butterfly valves (double-offset design). The disc lifts immediately off the seat upon opening, drastically reducing seal friction, lowering operating torque, and extending seat lifespan on high-volume pipelines.
  • Pump Station Discharge Protection: Fast-closing non-slam check valves (nozzle check or damped swing check valves) engineered to close before flow reversal occurs, eliminating destructive hydraulic water hammer.
  • Pipeline High Points & Grade Changes: Automatic air release valves to vent entrapped air during pipe charging and prevent vacuum collapse during rapid line drainage.

⚠️ What Goes Wrong in Water Mains

  • Water Hammer (Hydraulic Shock): When main transfer pumps trip, water column separation and rapid reversal smash traditional swing check valve discs shut with violent force, rupturing pipe joints and fracturing valve bodies. Sizing fast-closing non-slam check valves based on pump deceleration curves is essential.
  • Tuberculation & Internal Rusting: Using cheap cast iron with generic wet paint leads to rapid internal tuberculation, reducing pipe flow diameter and contaminating potable water. Specifying electrostatic Fusion Bonded Epoxy (FBE) inside and outside with holiday detection eliminates internal corrosion.

2. Wastewater Treatment Plants (WWTP / STP) & Sludge Lines

Raw wastewater, screening channels, aeration basins, and sludge dewatering facilities carry stringy debris, wet wipes, fibrous rags, abrasive grit, and corrosive biogenic gases (H2SH_2SH2​S). Standard industrial valves clog and fail in this environment within weeks.

Recommended Configurations:

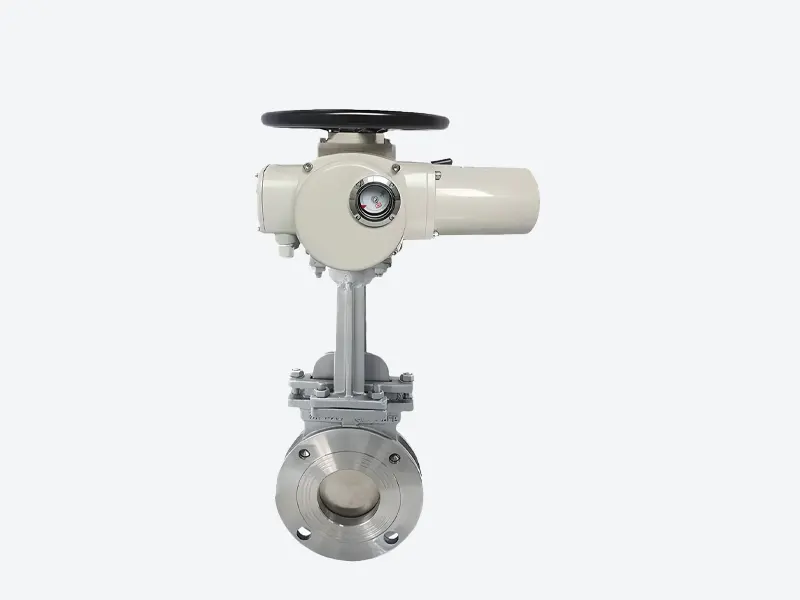

  • Raw Sewage, Sludge & Grit Isolation: Electric knife gate valves and pneumatic knife gate valves. The beveled stainless steel gate blade acts as a guillotine, cleanly slicing through fibrous solids and ragging materials against a resilient or metal seat without jamming.
  • Sewage Lift Pump Non-Return Duty: Sewage ball check valves (rubber-coated ductile iron ball). As flow begins, the internal ball is swept entirely out of the flow stream into a side pocket, providing an unobstructed full bore where rags and stringy waste cannot catch or wrap.
  • Abrasive Thickened Sludge & Scum Control: Eccentric plug valves with wear-resistant rubber-encapsulated plugs. The rotary design sweeps across the seat without dragging abrasive grit, maintaining positive shutoff on heavy primary sludge lines.
  • Aeration Air Blower Regulation: High-performance globe control valves or modulated triple-offset butterfly valves to balance dissolved oxygen injection across aeration tanks.

⚠️ What Goes Wrong in Wastewater

  • The "Generic Gate Valve" Blunder: Installing standard wedged gate valves on sewage lines. Suspended rags and sludge settle into the bottom body recess; within a month, the wedge cannot seat fully, leaving the valve permanently passing.
  • Uni-Directional vs. Bi-Directional Knife Gate Leakage: Standard uni-directional knife gate valves seal only when upstream line pressure forces the blade against the seat. When installed in settling tanks or decanting channels where backpressure or two-way hydraulic heads occur, fluid bypasses the blade. Always clarify whether bi-directional knife gate valves are required in your RFQ.

3. Desalination Plants & Seawater Reverse Osmosis (SWRO)

Seawater desalination facilities combine severe chloride concentrations with operating pressures up to 70–80 bar in the high-pressure membrane feed loops.

Recommended Configurations:

  • High-Pressure RO Feed & Brine Reject Isolation: High-pressure duplex stainless steel ball valves (2205 / 2507) and Super Duplex alloys. Standard 316L stainless steel suffers rapid pitting and crevice corrosion under stagnant, warm seawater; duplex metallurgy provides high critical pitting temperature (CPT) resistance.
  • Low-Pressure Pre-Treatment & Intake Headers: Concentric rubber-lined electric butterfly valves with thick, vulcanized EPDM or NBR liners and Super Duplex / Nickel Aluminum Bronze (NAB) discs to isolate seawater prior to membrane filtration.

4. Industrial Effluent & Chemical Dosing Loops

Industrial wastewater neutralizes hazardous process runoff using chemical coagulants, flocculants, strong acids, and chlorine compounds.

Recommended Configurations:

  • Chemical Dosing & Neutralization Skids (H2SO4, NaOH, PAC, PAM): Fully lined PTFE-lined butterfly valves and fluorine-lined ball valves. Inert fluoropolymer linings shield the ductile iron shell from direct chemical contact up to 150°C.
  • Automated Pilot & Purge Lines: Corrosion-resistant solenoid valves with PTFE or PVDF diaphragms for fast, automated dosing cycles.

Quality Assurance: Ductile Iron Casting & FBE Coating Integrity

In the municipal and industrial water sector, valve longevity depends directly on metallurgical integrity and barrier coating quality:

1. Ductile Iron vs. Gray Cast Iron

  • Lower-tier suppliers frequently substitute brittle gray cast iron (GG25) to reduce cost.
  • DELCO manufactures pressure-retaining shells from certified Ductile Iron (GGG50 / ASTM A536 65-45-12), delivering superior tensile strength and impact resistance against ground settlement and dynamic pressure surges.

2. High-Integrity Fusion Bonded Epoxy (FBE) Coating

  • Application: Electrostatically applied thermo-setting epoxy powder preheated to 200°C+.
  • Thickness: Uniform dry film thickness of 250 μm to 300 μm on all internal and external cast surfaces.
  • Testing: 100% inspected using high-voltage Holiday Detection (Spark Testing) to verify zero pinholes or micro-porosity, preventing under-film corrosion in buried and submersible chambers.
  • Sanitary Safety: Non-toxic formulation compliant with international drinking water contact guidelines.

Dedicated Support for Waterworks Distributors & EPC Contractors

If you are a regional valve stockist, distributor, or procurement contractor bidding on municipal water tenders, private industrial parks, or wastewater upgrade projects, DELCO acts as your dedicated engineering back-office:

  • Fast Technical Submittals (12–24h Turnaround): Receive unbranded or co-branded CAD drawings, engineering datasheets, flow calculations (Cv/KvCv/KvCv/Kv), and electrical wiring schematics ready for direct submission to your project consultant.
  • Consolidated Mixed-Valve Containers: Municipal tenders require diverse equipment. Combine resilient seated gate valves, knife gate valves, butterfly valves, check valves, and air release valves into a single 20ft or 40ft container—slashing international ocean freight and customs brokerage fees.
  • Single-Source Tested Packages: We assemble and bench-test electric actuated valves and pneumatic knife gate valves in-house before shipment. You receive one fully warranted package—eliminating third-party actuator mounting errors on-site.
  • Strict Channel & Project Protection: We value long-term partnerships. Project registration guarantees DELCO will never bypass your company to quote directly to your designated end-user or engineering contractor. Neutral tagging, stainless steel client nameplates, and private-label OEM branding are standard services.

Actuation Selection for Waterworks: Electric, Pneumatic, or Manual?

Choosing the proper actuation platform depends on site power, ambient humidity, and chamber depth:

  • Buried Pits & Floodable Valve Vaults: Specify electric actuators with IP68 submersible enclosures (submerged up to 72 hours under a 10-meter water column). Standard features include local manual handwheel overrides, position transmitters, and optional Modbus/Profibus fieldbus communication.
  • Wastewater Treatment Skids & Filter Galleries: Specify pneumatic actuators (double-acting or spring-return) for rapid, high-cycle sequencing on filter backwash and sludge discharge lines.
  • Infrequent Isolation Points: Manual handwheels or heavy-duty enclosed bevel gearboxes with standard ISO 5211 mounting flanges for future motorization.

How to Get an Engineering Quotation in 12 to 24 Hours

To receive an exact technical proposal and competitive tender pricing without unnecessary clarification delays, copy and send this 7-parameter water checklist:

WATERWORKS VALVE RFQ CHECKLIST

  1. Application Point : [e.g., Potable distribution, Raw sewage, Aeration, Desalination]
  2. Media & Solids % : [Clean water / Wastewater with rags / % Sludge content / Chloride ppm]
  3. Nominal Size & Rating: [DN (mm) or NPS (Inches) | PN10, PN16, PN25, Class 150]
  4. Body & Trim Material : [Ductile Iron GGG50, 304SS, 316SS, Duplex 2205]
  5. Coating Requirement : [Standard FBE 250μm, WRAS-grade epoxy, or Rubber lining]
  6. Flange Standard : [EN 1092-2 (PN10/16), BS 4504, ANSI B16.1, AS 4087]
  7. Actuation Platform : [Bare-shaft / Cap-top / Handwheel / IP68 Electric / Pneumatic

Example Tender Enquiry:
Sewage pump station discharge, Raw wastewater with fibrous solids, DN300, PN16, Ductile Iron GGG50 body, 316SS gate blade, EPDM seat, FBE 250μm coated, equipped with IP68 electric on/off actuator (380V 3Ph, with 4-20mA position feedback).

Send your schedule to our engineering sales team, and we will return matched model codes, dimension drawings, and commercial pricing within 12 to 24 hours.

Frequently Asked Questions

Why should I choose a knife gate valve over a standard gate valve for sewage sludge?

Standard gate valves feature an internal bottom pocket where solid waste, sand, and stringy fibers settle. Over time, the trapped debris prevents the wedge from fully closing, leading to seat damage and continuous leakage. A knife gate valve features a beveled, precision-ground blade that cleanly shears through suspended matter, providing drop-tight shutoff against resilient or metal seats without an internal sediment trap.

Why is Fusion Bonded Epoxy (FBE) coating thickness critical for water valves?

Thin, liquid-painted coatings frequently suffer from pinhole voids and low adhesion. Under moist soil or continuous raw water immersion, micro-corrosion initiates at these void sites, leading to blistering, tuberculation, and body wall thinning. Electrostatically applied Fusion Bonded Epoxy (FBE) at 250–300 μm forms a cross-linked chemical barrier verified by high-voltage holiday testing, ensuring 20+ years of maintenance-free service.

How do I prevent destructive water hammer at high-lift water pump stations?

Install fast-closing non-slam check valves at the pump discharge header. Standard swing check valves have high disc inertia and close slowly after water column reversal has already initiated, generating dangerous pressure shock waves. Non-slam nozzle check valves employ spring-assisted discs that travel short linear distances to seat closed precisely at the moment of zero velocity.

What is the advantage of Ductile Iron GGG50 over Gray Cast Iron GG25?

Ductile Iron (GGG50 / ASTM A536) contains nodular graphite rather than graphite flakes, delivering twice the tensile strength and significantly higher ductility and impact resistance. This structural integrity prevents body fractures caused by water hammer surges, ground subsidence in buried pipelines, or thermal expansion stresses.

Ready to Quote Your Water Project?

Whether you are preparing a municipal tender submittal, upgrading an industrial effluent treatment facility, or sourcing stock for regional distribution, DELCO delivers certified valve assemblies on time and within budget.

  • Submit Your RFQ / Tender Schedule: Send your equipment list or 7-parameter checklist to our engineering team for a 12–24h commercial turnaround.
  • Explore Our Complete Manufacturing Line: Discover our full portfolio across actuators, electric actuated valves, globe control valves, solenoid valves, and speciality check valves.
  • Distributor & Stockist Inquiries: Contact our international channel team to request our unbranded tender submittal library, complete product catalogues, and distributor partnership terms.
