This type of valve is essential for fluid mixing, diverting, or blending processes within complex process piping systems. The pneumatic actuator with a positioner allows for continuous, high-precision modulation of flow, ensuring accurate temperature or concentration control—a critical requirement in chemical or pharmaceutical manufacturing where tight process tolerances are necessary.

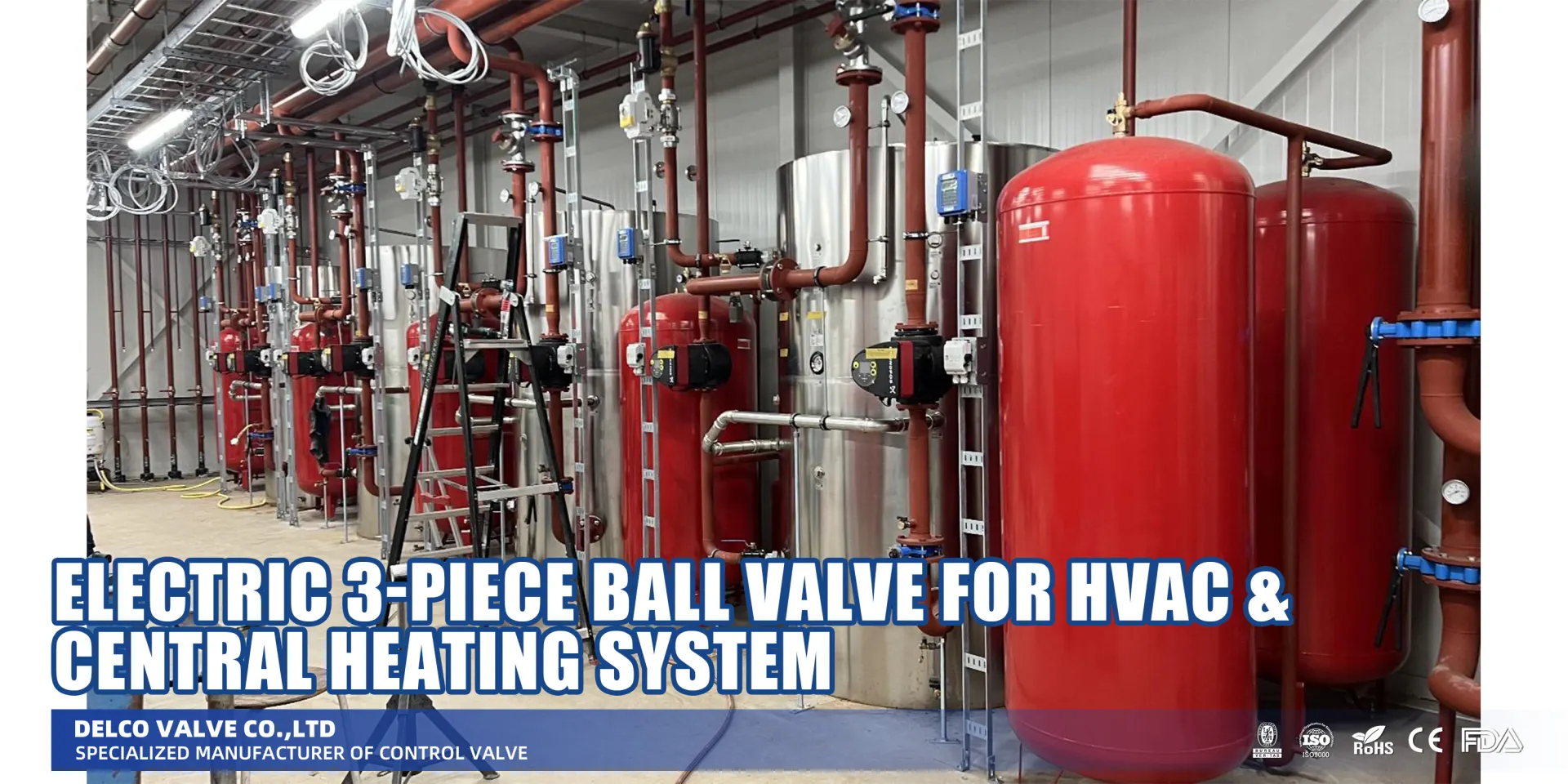

The valves, identified as 3-Piece Ball Valves, are ideally suited for reliable on/off and flow control in heating and chilled water loops. The use of electric actuation allows for automated modulation and tight isolation of the boiler/storage units, maximizing energy efficiency and maintaining stable system temperatures across the facility.

The automation package includes high-precision Solenoid Valves for rapid and remote operation, ensuring reliable fluid isolation and precise control within the process lines.

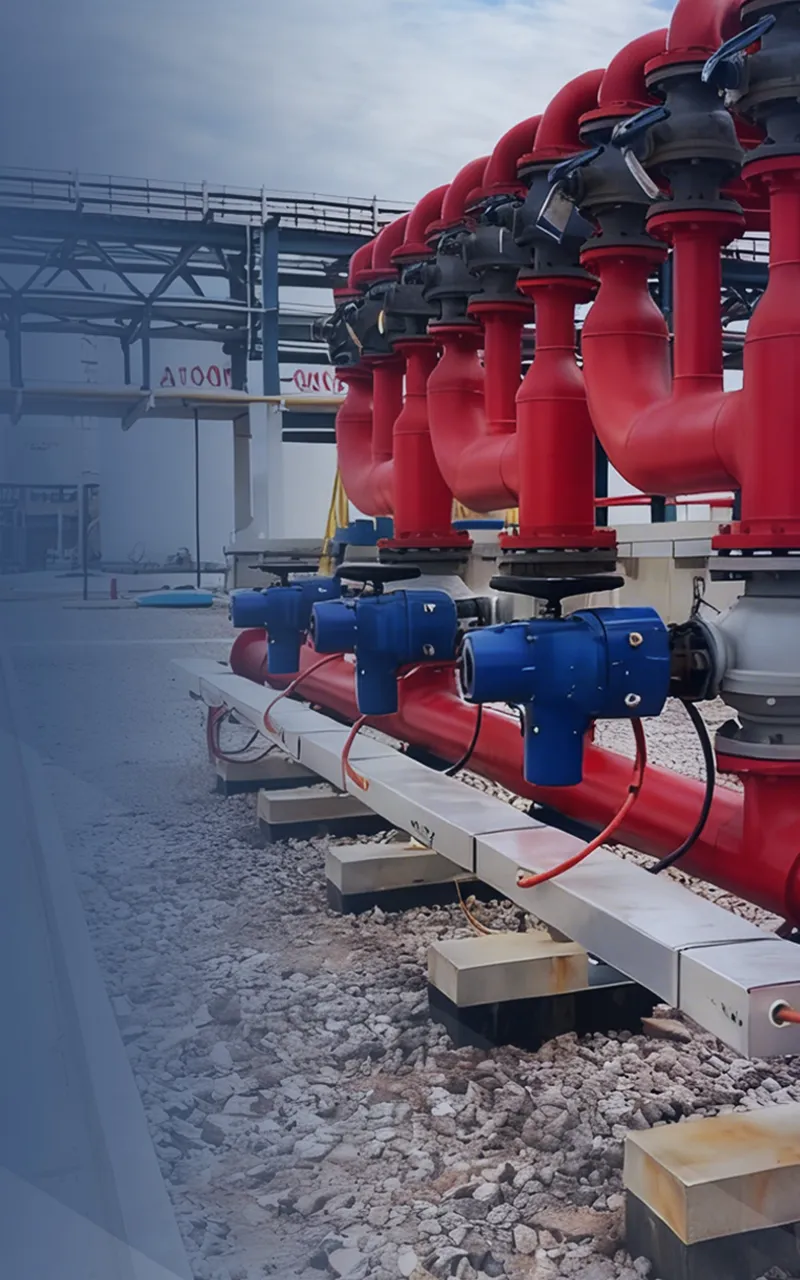

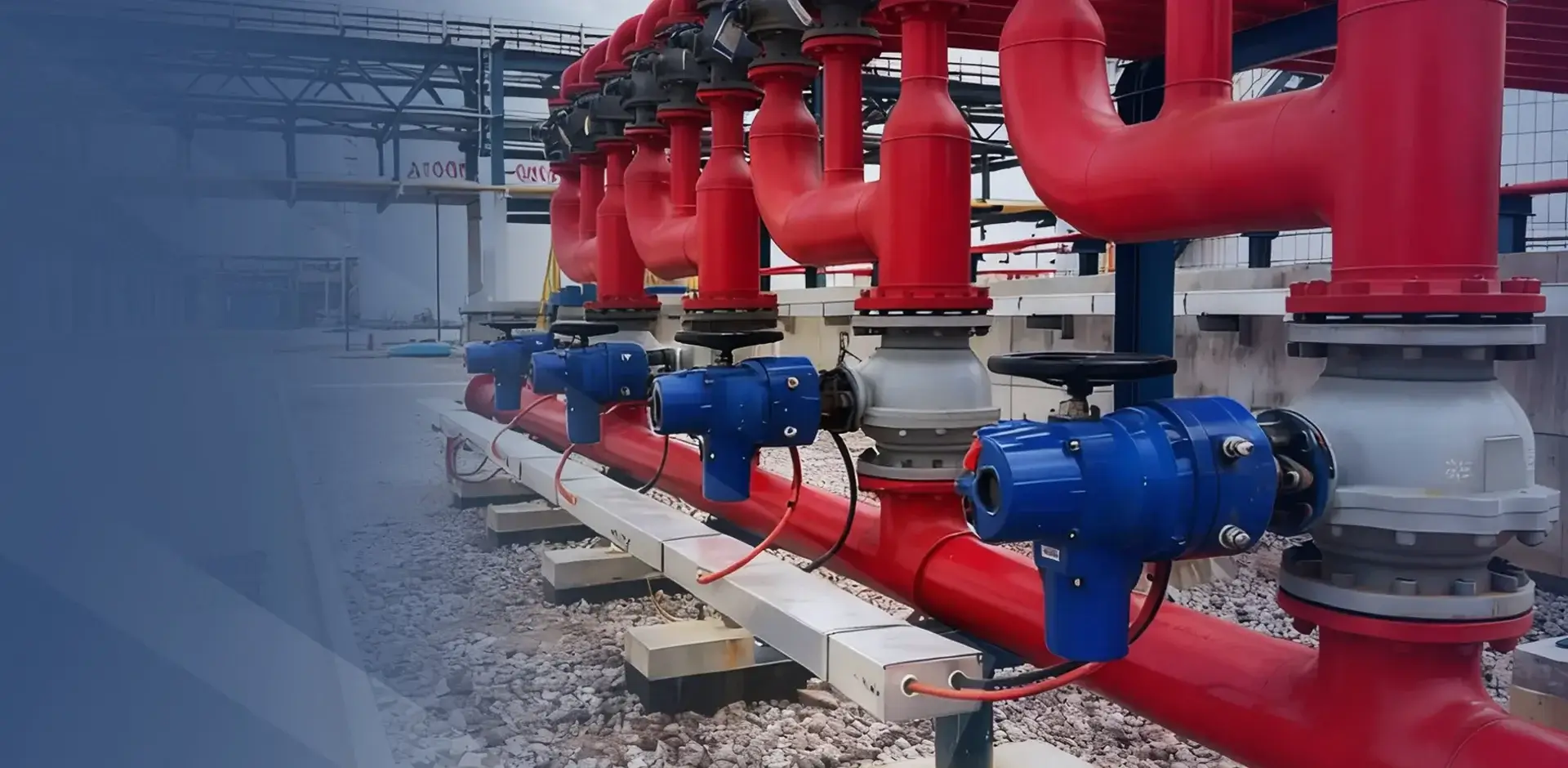

The blue valves are Butterfly Valves, known for their compact size and low-pressure drop, ideal for high-flow cooling water service. They are equipped with Electric Actuators , enabling automated on/off and precise flow regulation. The valves utilize a secure flanged connection for reliable mounting to the large-bore main headers.

This assembly is designed for continuous, high-precision modulation of fluid parameters (pressure, temperature, or flow rate). The robust, bolted flanged connection is essential for maintaining integrity under the high-pressure and high-temperature conditions common in these process industries.

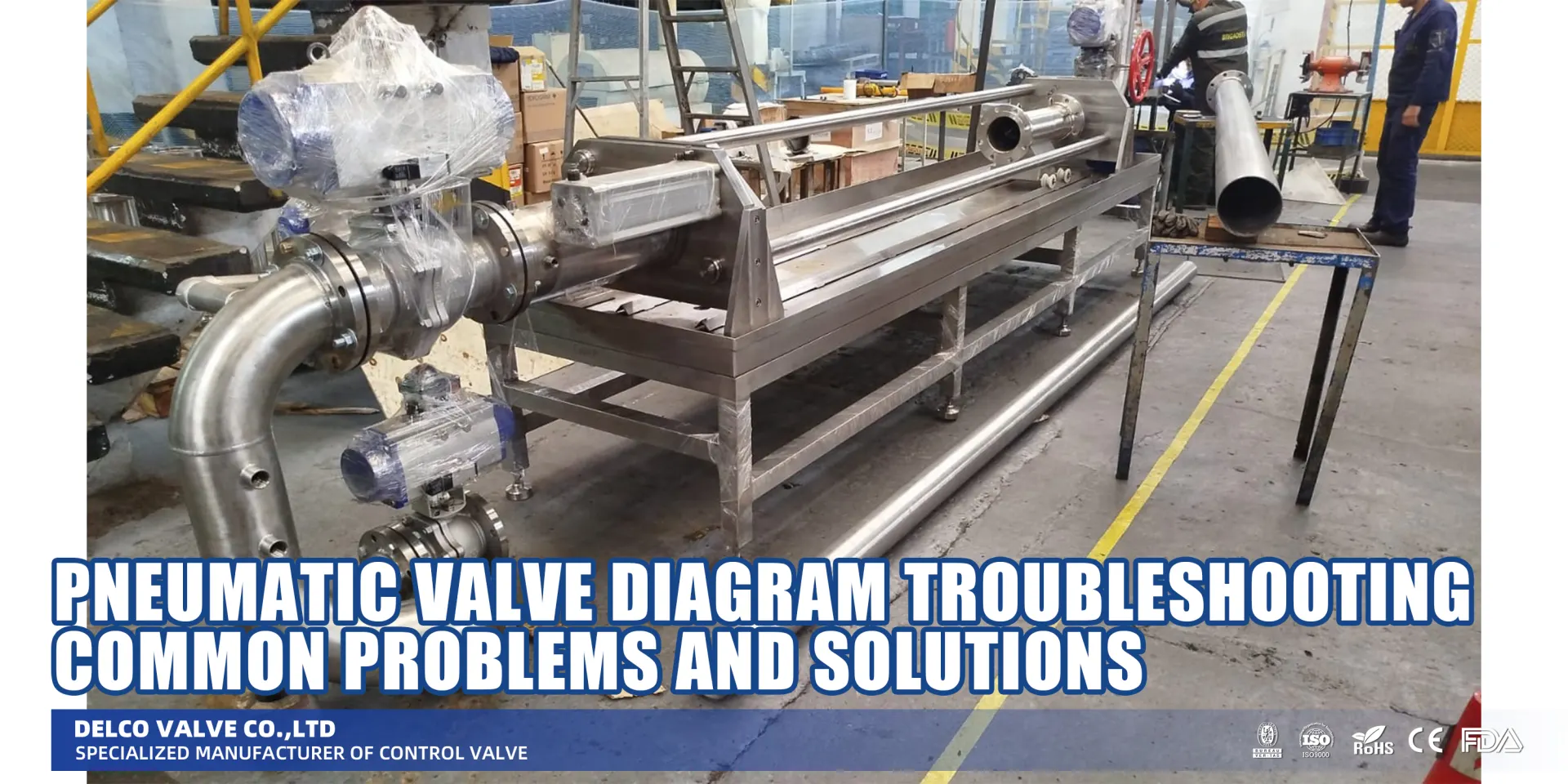

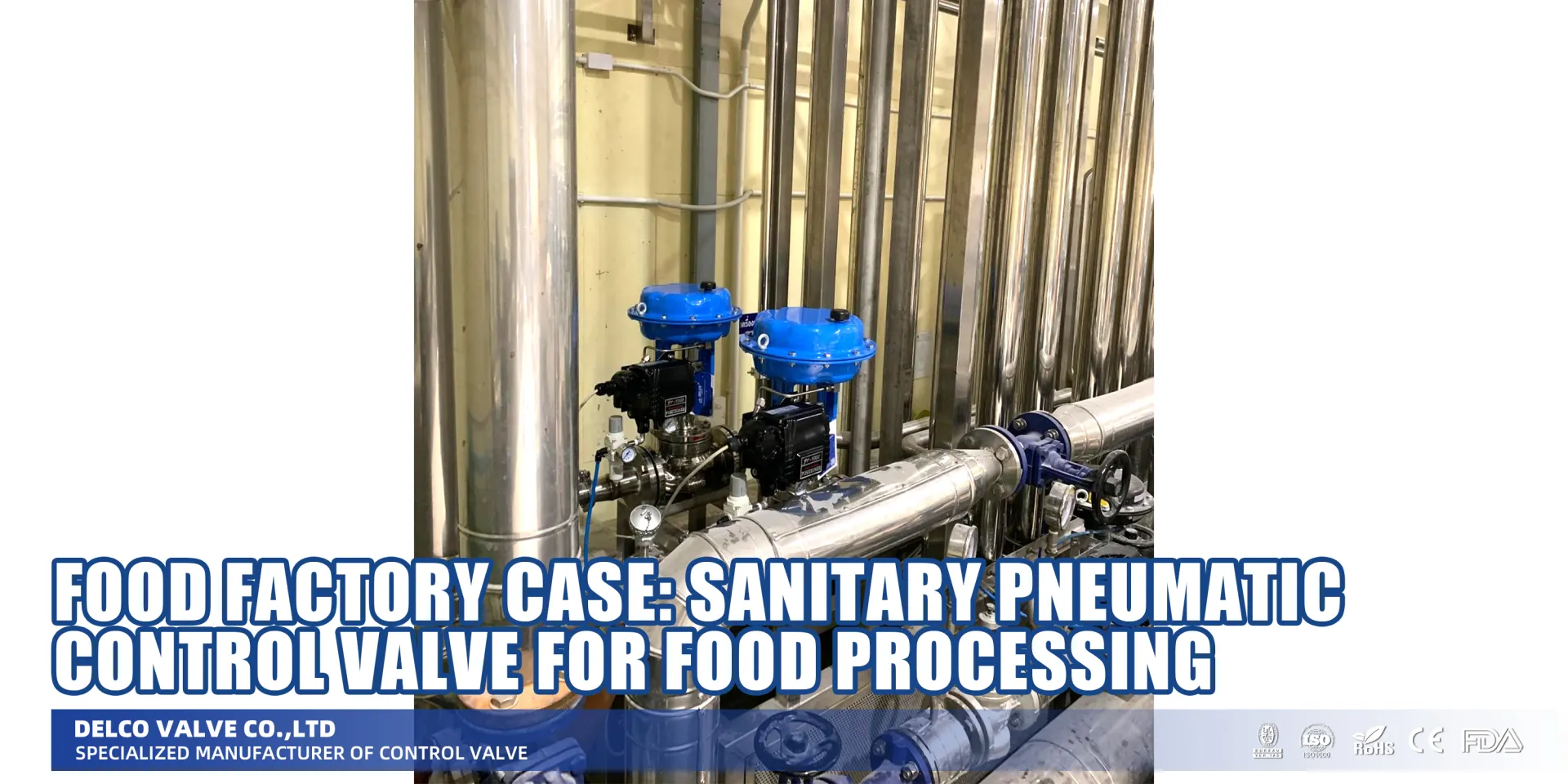

The system, clearly utilizing stainless steel piping and components, indicates an application in industries requiring high levels of hygiene or corrosion resistance. The valves are Pneumatic Valves, crucial for rapid, automated on/off control within the process skid. Pneumatic actuation is chosen for its fast response speed and inherent safety in industrial environments, ensuring precise flow management.
